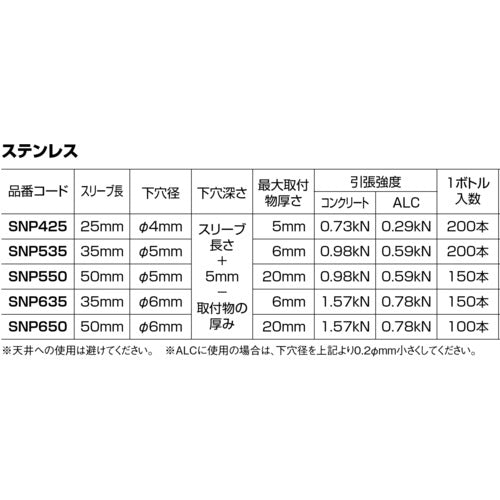

Catalog number: SNP425 Features: ● Installation can be done with a hammer, and removal can be done with a single screwdriver. Applications: ● For ALC and concrete. Specifications: ● Outer diameter (mm): 3.8 ● Length (mm): 25 ● Maximum thickness of object to be attached (mm): 5 ● Drilling depth (mm): 30mm - thickness of object to be attached ● Maximum tensile load (kN): 0.73 ● Pilot hole diameter (mm): 4 ● Pilot hole diameter (mm) concrete: 4 ● Pilot hole diameter (mm) ALC: 3.8 ● Head shape: Slot ● Nominal diameter (mm): 4 ● Head shape: Slot ● Packed Material/Finish: ● Body: Nylon ● Screws: Stainless steel Note: ● Maximum tensile load is the value when the concrete strength is Fc24.5N/m［［Ｍ２］］.
