(株)ロブテックス
EBI nail plug (150 pieces) 6 x 35 mm NP635 1PK
EBI nail plug (150 pieces) 6 x 35 mm NP635 1PK
Regular price
¥4,158
Regular price
Sale price
¥4,158
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

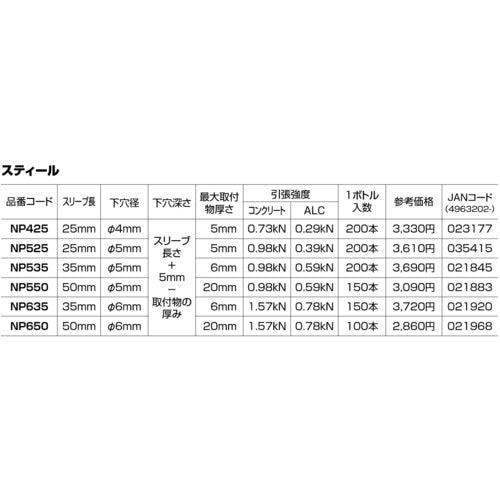

Catalog number: NP635 Features: ● Installation is done by simply hammering in the product, and removal is done with a single screwdriver. Applications: ● For installing step lines on ALC and concrete stairs, installing curtain rails, and installing gas and water pipes on walls. ● The wave-shaped M-shaped grooves always guide the screw nail to the center of the sleeve, providing uniform resistance and achieving stable tensile strength. ● When the screw nail is driven all the way in, a part under the neck of the sleeve buckles appropriately, absorbing the repulsion that occurs between the screw nail and the base material, so the attachment can be securely fixed to the base material without any rattle. ● The numerous uneven parts on the sleeve surface firmly bite into the wall of the base material hole. ● By connecting parts of the sleeve split surface, premature expansion is prevented when the anchor is inserted into the base material pilot hole. ● The small inner diameter of the sleeve expansion part generates a large expansion force when the screw nail is driven in, resulting in a high pull-out load. Specifications: ●Outer diameter (mm): 5.8 ●Length (mm): 35 ●Maximum thickness of object to be attached (mm): 6 ●Drilling depth (mm): 40mm - thickness of object to be attached ●Maximum tensile load (kN): 1.57 ●Pilot hole diameter (mm): 6 ●Pilot hole diameter (mm) concrete: 6 ●Pilot hole diameter (mm) ALC: 5.8 ●Head shape: Slot ●Packed ●Quantity (pieces): 150 Material/Finish: ●Body: Nylon ●Screw: Steel Note: ●The maximum tensile load is the value when the concrete strength is Fc24.5N/m[[M2]]. ●The dimensions and weight are nominal values, so there may be some variation in the values.
