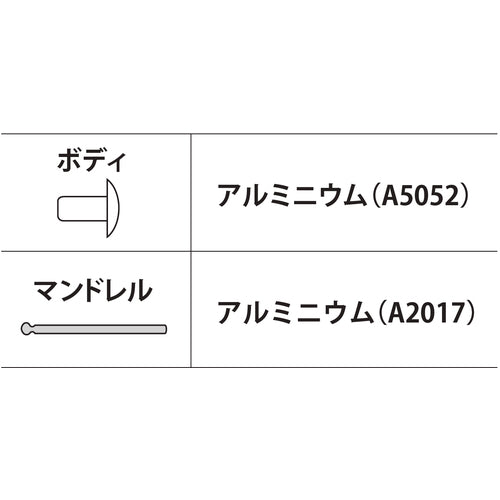

Catalog number: NA48A Features: *Lightweight blind rivet with aluminum mandrel and body *Excellent corrosion resistance, ideal for places where rust is unacceptable *Mandrel tip shape that is gentle on the hands *Multiple base materials can be fastened from one side with one action. *Compared to welding, it has the advantage of reducing labor and improving productivity. Applications: *Automotive sheet metal, electrical sheet metal, etc. Specifications: ● Crimping plate thickness (mm): 9.6-12.8 ● Rivet length (mm): 16.2 ● Flange diameter (mm): 6.4 ● Rivet diameter (mm): 3.2 ● Pilot hole diameter (mm): 3.3-3.4 ● Shear strength (N): 590 ● Tensile strength (N): 920 ● Head shape: Round head Compatible nose piece: 3.2 ● Boxed ● RoHS directive compliant Material/Finish: ● Rivet body: Aluminum (A5052) ● Mandrel: Aluminum (A2017) Caution: ● Please observe the dimensions specified by our company for the appropriate crimping plate thickness and pilot hole diameter, and take into consideration the safety factor when installing. ● Please be sure to read the instruction manual of the riveter you will be using carefully before starting work. ● Dimensions and weights are nominal values, so there may be some variation in the values.
