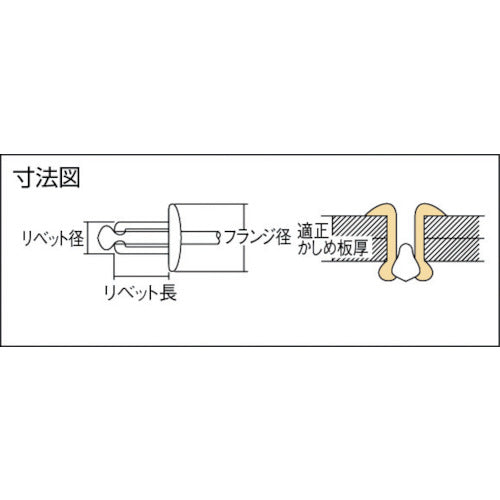

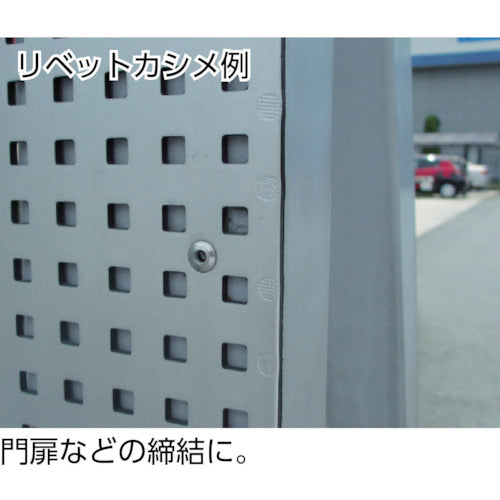

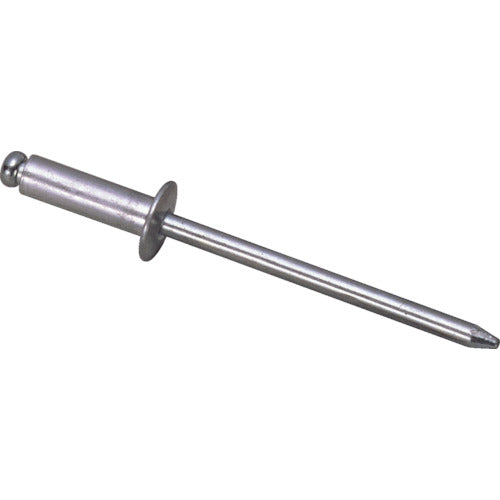

Catalog number: NA56 Features: ●Multiple base materials can be fastened from one side with one action. Compared to welding, it has the advantage of reducing labor and improving productivity. Applications: ●Automotive sheet metal, electrical sheet metal, etc. Specifications: ●Crimped plate thickness (mm): 6.4-9.5 ●Rivet length (mm): 13.9 ●Flange diameter (mm): 8.0 ●Rivet diameter (mm): 4.0 ●Pilot hole diameter (mm): 4.1-4.2 ●Shear strength (N): 1150 ●Tensile strength (N): 1640 ●Boxed ●RoHS directive compliant ●Quantity (pieces): 1000 Material/Finish: ●Rivet body (flange): Aluminum (A5052) ●Mandrel (shaft): Aluminum (A2017) Caution: ●Please observe our specified dimensions for the appropriate crimped plate thickness and pilot hole diameter, and take into consideration the safety factor when installing. ●Be sure to read the instruction manual for the riveter you will be using carefully before starting work. ●Dimensions, weight, etc. are nominal values and may vary slightly.
