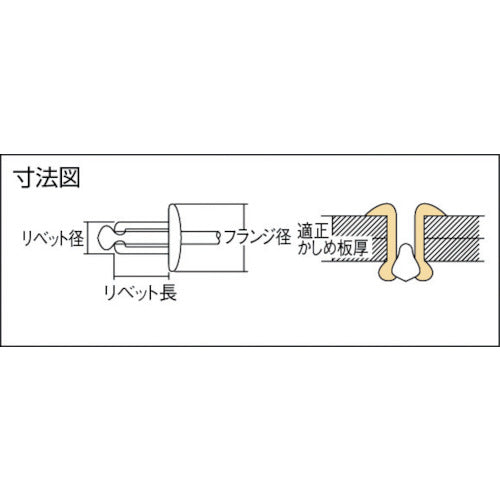

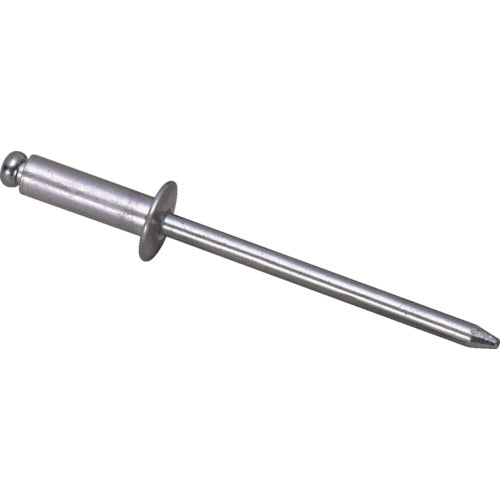

Catalog number: NA610 Features: ●Multiple base materials can be fastened from one side with one action. Compared to welding, it has the advantage of reducing labor and improving productivity. Applications: ●Automotive sheet metal, electrical sheet metal, etc. Specifications: ●Crimped plate thickness (mm): 12.7-15.9 ●Rivet length (mm): 21.3 ●Flange diameter (mm): 9.6 ●Rivet diameter (mm): 4.8 ●Pilot hole diameter (mm): 4.9-5.0 ●Shear strength (N): 1680 ●Tensile strength (N): 2380 ●Boxed ●RoHS directive compliant ●Quantity (pieces): 1000 Material/Finish: ●Rivet body (flange): Aluminum (A5052) ●Mandrel (shaft): Aluminum (A2017) Caution: ●Please observe our specified dimensions for the appropriate crimped plate thickness and pilot hole diameter and take into consideration the safety factor when installing. ●Please read the instruction manual for the riveter you are going to use carefully before starting work. ●The dimensions and weight are nominal values and may vary slightly.
