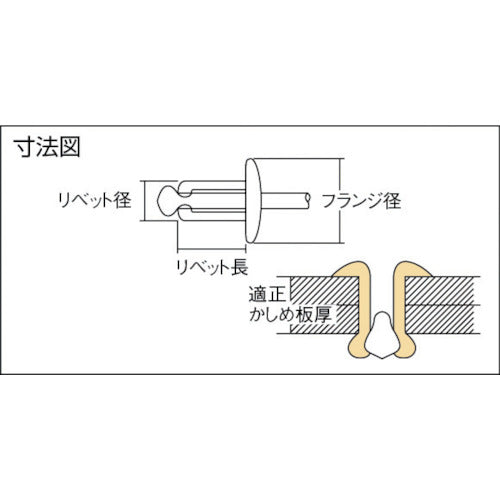

Catalog number: NSA41 Features: ●Multiple base materials can be fastened from one side with one action. ●Compared to welding, it has the advantage of reducing labor and improving productivity. ●Compared to welding, no CO2 or exhaust gas is generated during fastening. Applications: ●Automotive sheet metal, electrical sheet metal, etc. Specifications: ● Crimping plate thickness (mm): 1.0-1.6 ● Rivet length (mm): 4.8 ● Flange diameter (mm): 6.4 ● Rivet diameter (mm): 3.2 ● Pilot hole diameter (mm): 3.3-3.4 ● Shear strength (N): 960 ● Tensile strength (N): 1350 ● Box quantity (pieces): 1000 ● Boxed ● RoHS compliant ● Quantity (pieces): 1000 ● Body material: Aluminum (A5154) ● Mandrel material: Steel (carbon steel) Material/Finish: ● Rivet body (flange): Aluminum (A5154) ● Mandrel (shaft): Steel (carbon steel) Caution: ● Please observe the appropriate crimping plate thickness and pilot hole diameter specified by our company and take into consideration the safety factor when installing. ● Please be sure to read the instruction manual of the riveter you will be using carefully before starting work. ● Dimensions and weight are nominal values, so there may be some variation in the values.
