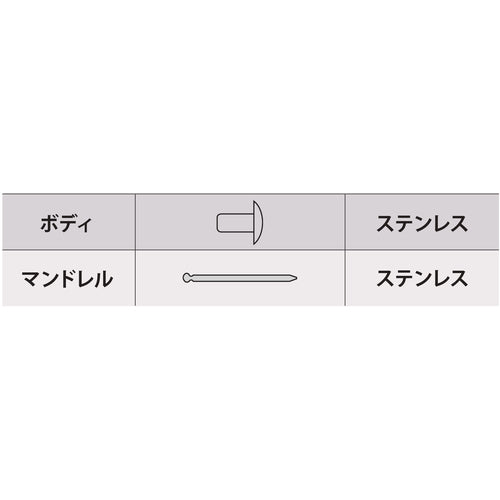

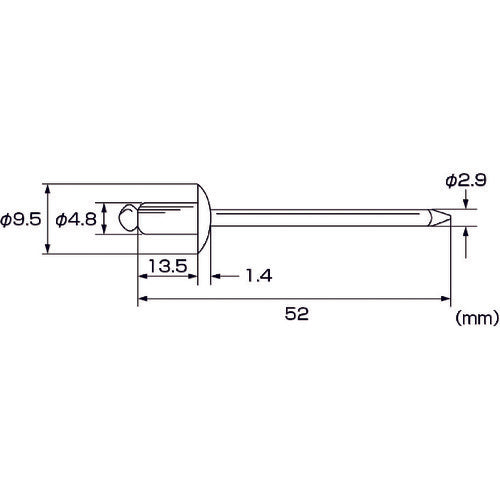

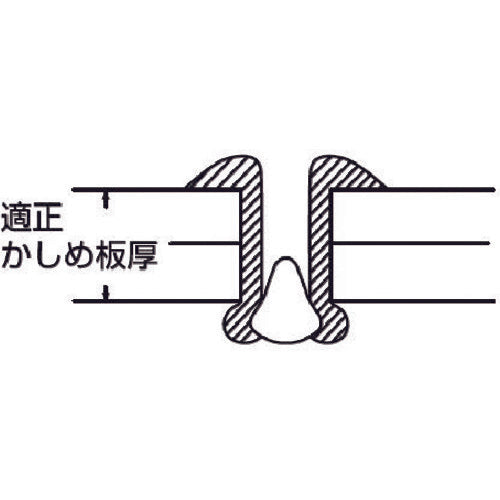

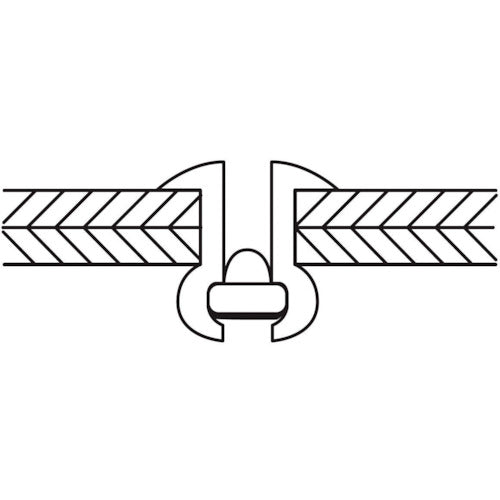

Catalog number: NST66MP Features: ● Small size that can be used for the required job without waste. ● Multiple base materials can be fastened from one side with one action. Applications: ● Excellent corrosion resistance, ideal for wet areas and outdoors. ● Both the mandrel and body are made of stainless steel, making it ideal for places where strength is required. ● Small size that can be used for the required job without waste. ● Multiple base materials can be fastened from one side with one action. ● Compared to welding, it has the advantage of reducing labor and improving productivity. Specifications: ● Crimping plate thickness (mm): 6.4-9.5 ● Rivet length (mm): 13.5 ● Flange diameter (mm): 9.5 ● Rivet diameter (mm): 4.8 ● Pilot hole diameter (mm): 4.9-5.0 ● Shear strength (N): 5450 ● Tensile strength (N): 6350 ● Eco-pack included ● RoHS compliant ● Pack quantity (pieces): 15 ● Body material: Stainless steel (SUS305) ● Mandrel material: Stainless steel (equivalent to SUS304) Material/Finish: ● Body: Stainless steel (SUS305) ● Mandrel: Stainless steel (equivalent to SUS304) Caution: ● For the appropriate crimping plate thickness and pilot hole diameter, please observe our specified dimensions and take into consideration the safety factor when installing. ● Be sure to read the instruction manual for the riveter you will be using carefully before starting work. ● Be sure to read the instruction manual carefully before starting work and use it correctly after fully understanding it. ●Dimensions, weight, etc. are nominal values and may vary slightly.
