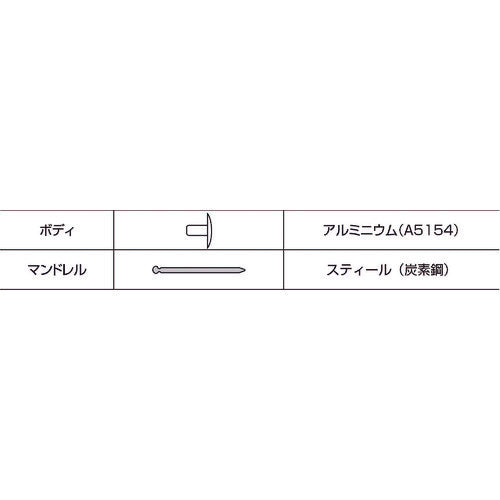

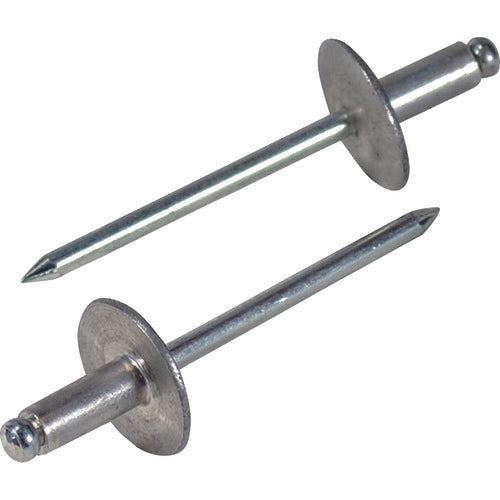

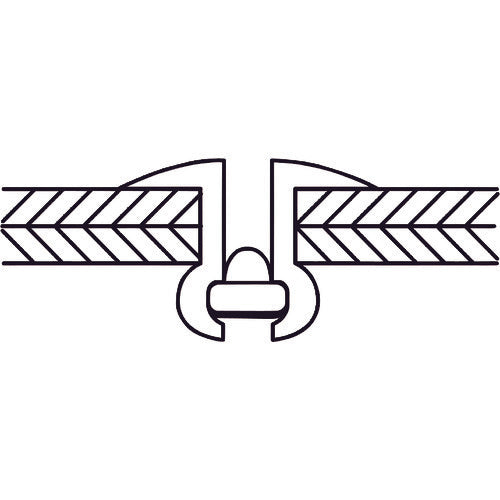

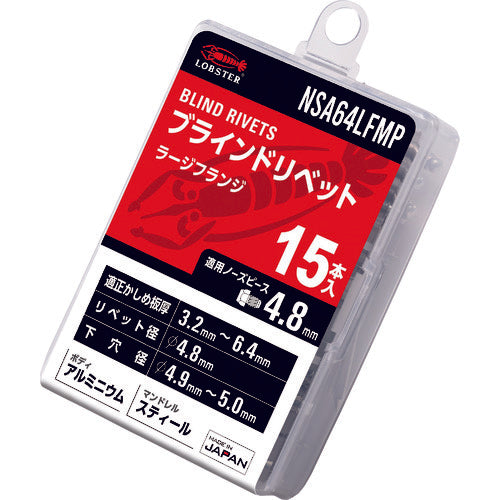

Catalog number: NSA64LFMP Features: ● Small size that can be used for necessary work without waste. ● Multiple base materials can be fastened from one side with one action. Applications: ● The body has a large flange, making it ideal for fastening soft materials such as plastic boards, FRP materials, and plywood. ● Small size that can be used for necessary work without waste. ● Multiple base materials can be fastened from one side with one action. Specifications: ● Crimping plate thickness (mm): 3.2-6.4 ● Rivet length (mm): 11.0 ● Flange diameter (mm): 15.9 ● Rivet diameter (mm): 4.8 ● Pilot hole diameter (mm): 4.9-5.0 ● Shear strength (N): 2200 ● Tensile strength (N): 3300 ● Eco-pack included ● RoHS compliant ● Pack quantity (pieces): 15 ● Body material: Aluminum (A5154) ● Mandrel material: Steel (carbon steel) Material/Finish: ● Body: Aluminum (A5154) ● Mandrel: Steel (carbon steel) Caution: ● For the appropriate crimping plate thickness and pilot hole diameter, please observe our specified dimensions and take into consideration the safety factor when installing. ● Be sure to read the instruction manual of the riveter you will be using carefully before working. ● Be sure to read the instruction manual carefully before working and use it correctly after fully understanding it. ● Dimensions and weight are nominal values, so there may be some fluctuation in the values.
