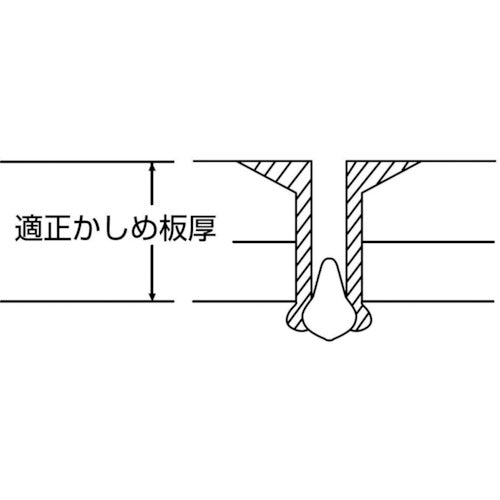

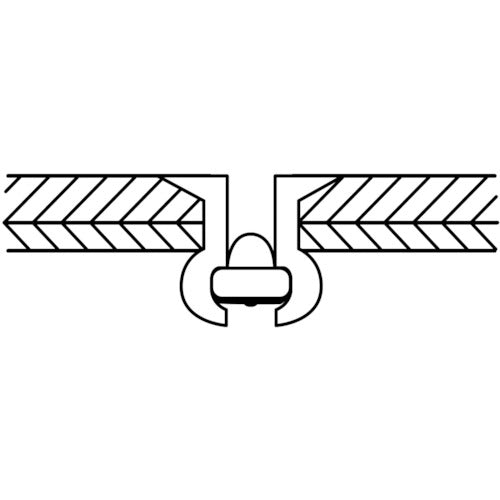

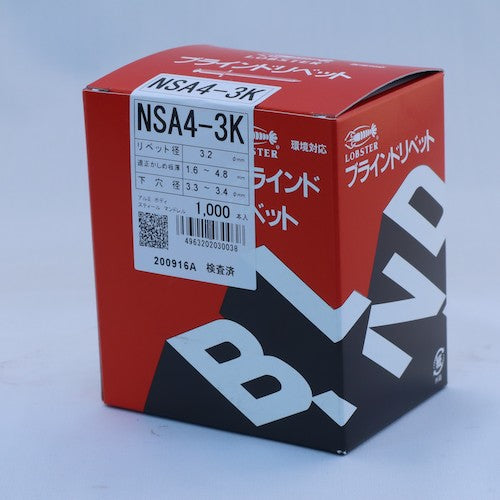

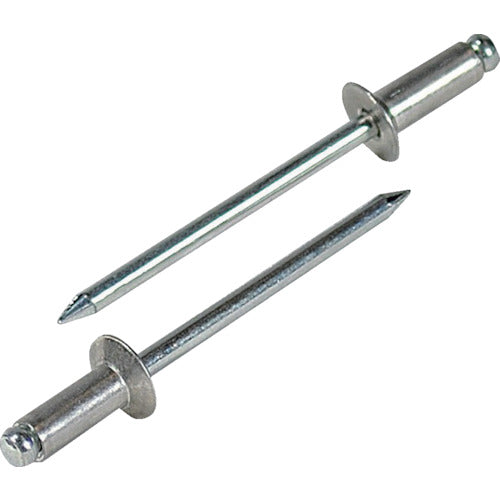

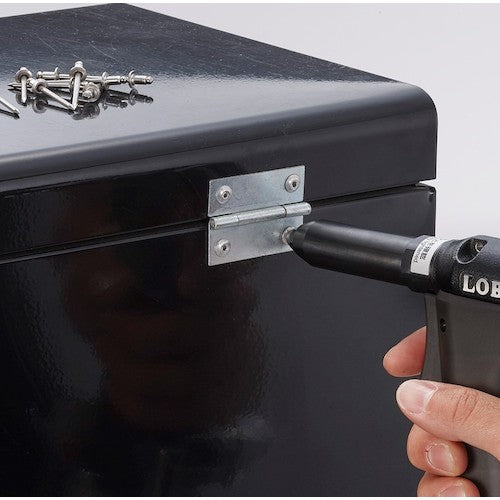

Catalog number: NSA43K Features: ●Use when you want to keep the surface flat. ●Flange countersunk head ●Multiple base materials can be fastened from one side with one action. Compared to welding, it has the advantage of reducing labor and improving productivity. Applications: ●For fastening metals together, fastening plastics together, and fastening dissimilar base materials (metal and plastics, etc.). Specifications: ● Crimping plate thickness (mm): 1.6-4.8 ● Rivet length (mm): 8.2 ● Flange diameter (mm): 6.4 ● Rivet diameter (mm): 3.2 ● Pilot hole diameter (mm): 3.3-3.4 ● Shear strength (N): 960 ● Tensile strength (N): 1360 ● Box quantity (pieces): 1000 ● Boxed ● RoHS compliant ● Quantity (pieces): 1000 Material/Finish: ● Rivet body (flange): Aluminum (A5154) ● Mandrel (shaft): Steel (carbon steel) Caution: ● Please observe the dimensions specified by our company for the appropriate crimping plate thickness and pilot hole diameter, and take into consideration the safety factor when installing. ● Please be sure to read the instruction manual of the riveter you will be using carefully before starting work. ● Dimensions and weights are nominal values, so there may be some variation in the values.
