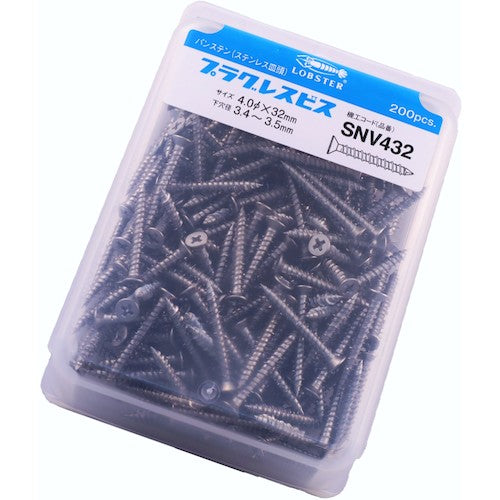

Catalog number: SNV432 Features: ●Ideal for attaching equipment to concrete, blocks, mortar, ALC materials, and wood. ●No need for insert parts such as plugs, which contributes to cost reduction, labor saving, and speed. Applications: ●For attaching equipment to concrete, blocks, mortar, ALC materials, and wood. Specifications: ●Nominal diameter d (mm): 4 ●Pre-drilled hole diameter (mm): 3.4-3.5 ●Embedding depth (mm): 29 ●Maximum tensile load (kN): 2.19 ●Drilling depth (mm): 42-t ●Length (mm): 32 ●Compatible driver: No. 2 ●Pre-drilled hole diameter (mmALC): Not required ●Number of pieces per pack: 200 Material/Finish: ●Stainless steel (SUS410) Note: ●The maximum tensile load is the value when the concrete strength Fc is 34.3N/mm [square]. ●The drilling depth is the value of length + 10mm + t (thickness of the object to be attached).
