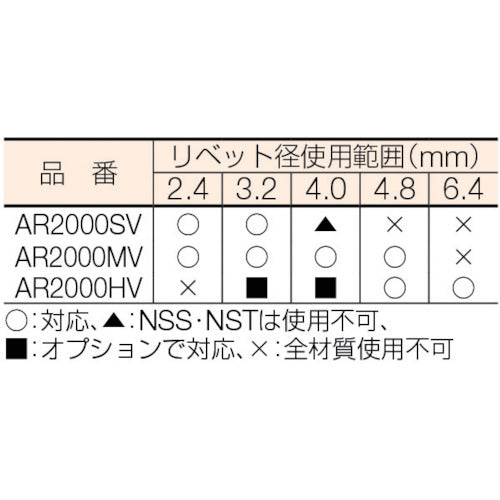

Catalog number: AR2000SV Features: ●Lightweight type with resin body. ●Air pressure is used to suck and hold the rivet to the nose piece, and the cut shaft is forcibly collected by using a tank unit or the like (type with suction and discharge device). Specifications: ●Total length (mm): 240 ●Jaw used: JS (small) ●Rivet use range (mm): 2.4, 3.2, 4.0 (NSS/NST not allowed) ●Nose piece used: 2.4, 3.2, 4.0mm ●Rivet diameter use range (mm): 2.4-4.0 ●Compatible rivet diameter (mm): 2.4, 3.2, 4.0 (NSS/NST not allowed) ●Type: Shockless type with suction and discharge device ●Required air pressure: 0.5-0.6MPa ●Shockless type ●With suction and discharge device ●Air mounting port: G1/4
