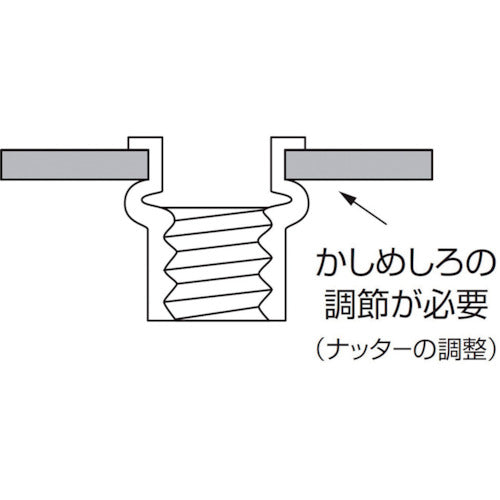

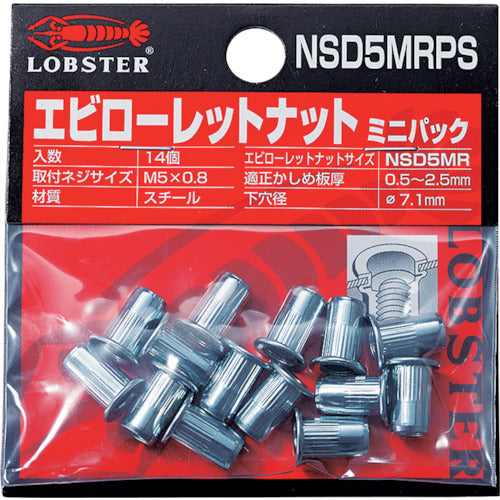

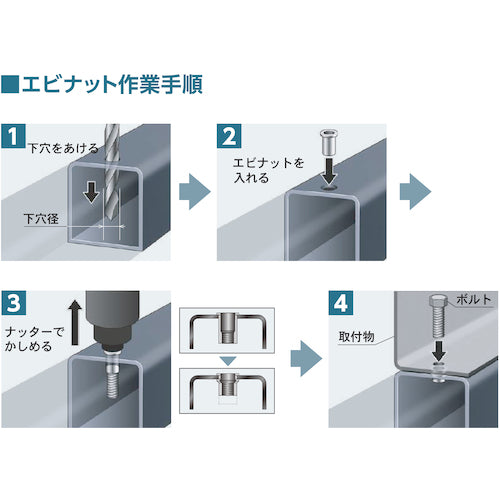

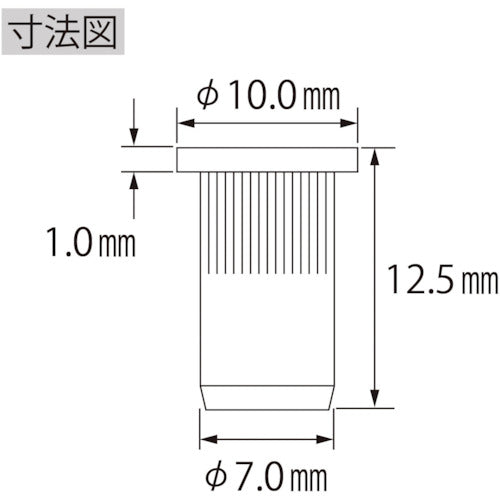

Catalog number: NSD5MRPS Features: ●Soft setting makes it ideal for thin plates and soft base materials. ●The tip is tapered, making it easy to enter pilot holes and ideal for automatic drilling. ●The knurling on the body grips the base material firmly, making it less likely to rotate. (However, this depends on the conditions.) ●The knurling on the body acts as a guide for forming the crimping rib, making installation easy. Specifications: ●Crimping plate thickness (mm): 0.5 to 2.5 ●Pilot hole diameter (mm): 7.1 ●Compatible screws: M5 x 0.8 ●Nut outer diameter (mm): 7.0 ●Total length (mm): 13.0 ●Flange thickness (mm): 1.0 ●Number of pieces per pack: 14 ●Flat head ●Packed Caution: ●Please observe our specified dimensions for the appropriate crimping plate thickness and pilot hole diameter and take safety factors into consideration when installing. ●Be sure to read the instruction manual for the tool (nutter) carefully before starting work. ●Dimensions, weight, etc. are nominal values and may vary slightly.
