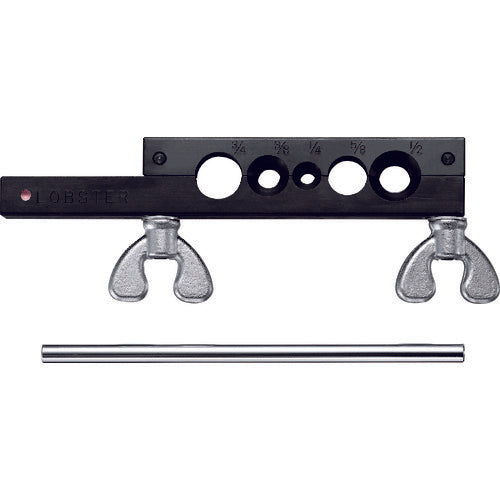

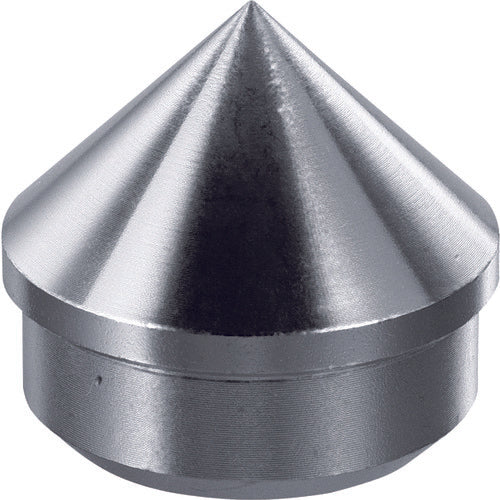

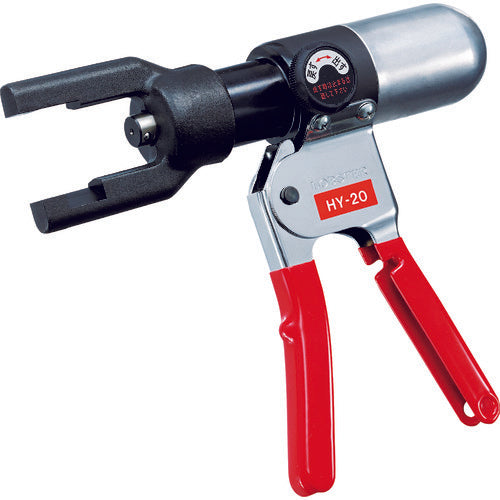

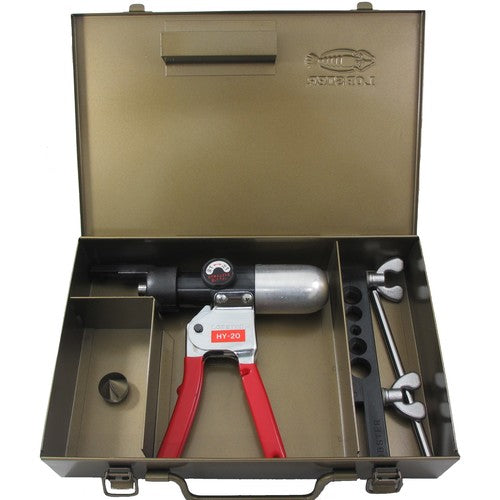

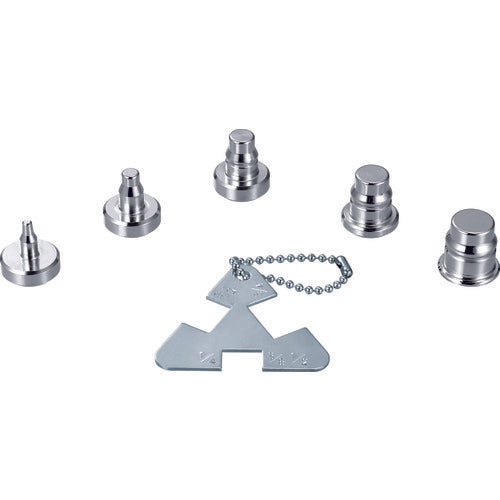

Catalog number: FSH20 Features: * By aligning the tip of the pipe to be flared with the surface of the gauge, you can quickly flare and swage it with hydraulic power. Applications: * Can be used for both flaring and swaging. Specifications: ●Type: Manual hydraulic ●Compatible pipe (nominal diameter): 1/4”, 3/8”, 1/2”, 5/8”, 3/4” ●Flaring angle (°): 45 ●Width (mm): 59 ●Depth (mm): 250 ●Height (mm): 200 ●Set contents: HY20 (hydraulic yoke) FTH20G (gauge) HFR45 (flaring roller) SD5S (sway die set) ●Applicable pipe outer diameter (inch): 1/4, 3/8, 1/2, 5/8, 3/4 ●Copper pipe for general refrigerant piping ●Hydraulic Material/Finish: ●Steel Set contents/Accessories: ●Steel case (H200×W250×D65mm)
