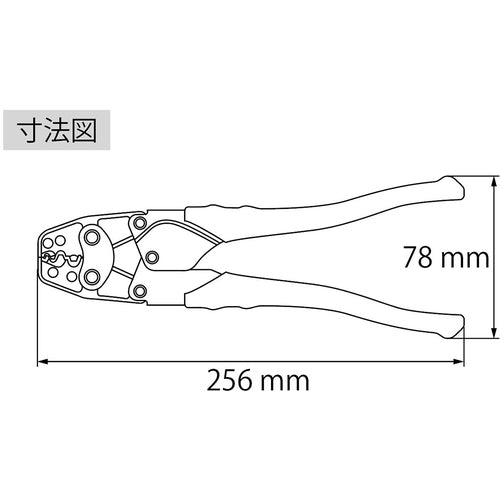

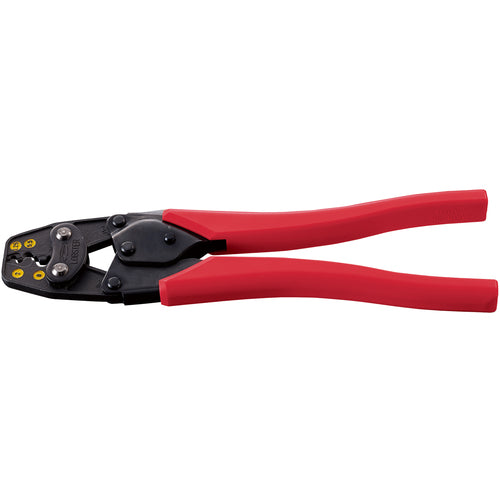

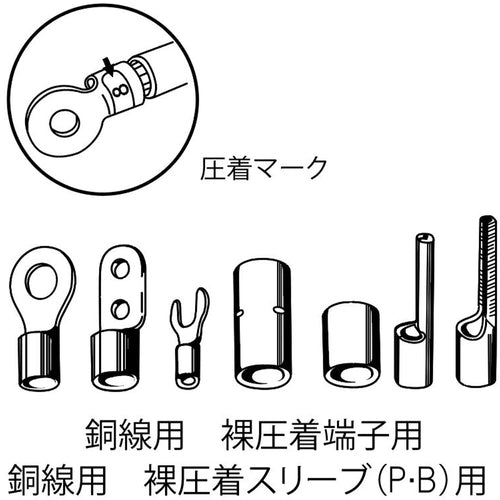

Catalog number: AK15A Features: ●Weighs only 430g, and handle operation is extremely light. ●Built-in molding confirmation mechanism. ●Complies with JIS C9711. ●Uses an elastomer resin grip that is non-slip and easy to hold! Applications: ●For crimping and connecting electric wires using bare terminals and sleeves. Specifications: ●Total length (mm): 256 ●Compatible wire ([MM2]): 1.25, 2, 5.5, 8 ●Crimp terminal: for bare crimp terminals, bare crimp sleeves (P/B) ●Crimp terminal ([MM2]) for bare terminals: 1.25, 2, 5.5, 8 ●Crimp terminal ([MM2]) B sleeve: 1.25, 2, 5.5, 8 ●JIS C 9711 standard product ●For bare crimp terminals for copper wire, bare crimp sleeves (PB) Material/Finish: ●Body: Steel ●Grip: Resin Note: ●3.5sq crimp terminals which are non-JIS standard can be crimped using the "5.5" die part.
