EBI Electroplated Diamond Cutter for Ceramic Siding 80mm EY80 1 piece

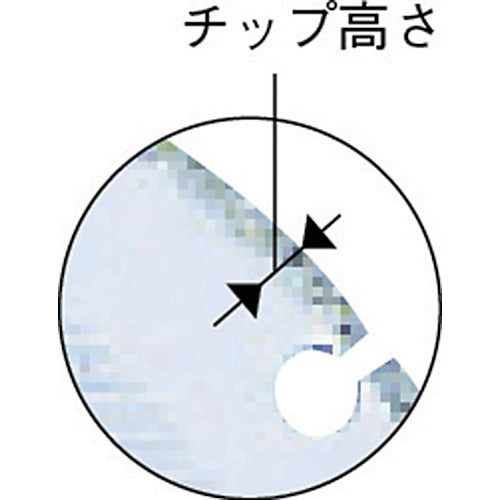

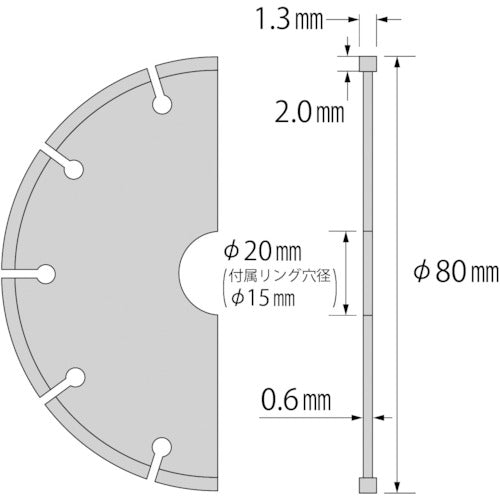

Catalog number: EY80 Features: ●Diamond abrasive grains are electroplated without gaps using a unique electroplating method, so smooth cutting performance is maintained. ●Ultra-thin type with low cutting resistance, greatly improving workability. ●Furthermore, it produces less dust and is more environmentally friendly. ●Multiple segments with good heat dissipation allow continuous cutting work. ●Dedicated to ceramic siding, but can also cut marble, slate, and resin materials. Applications: ●For cutting ceramic siding, marble, slate, FRP, CFRP, polyester resin, epoxy resin, rigid PVC, and other resin materials. Specifications: ●Outer diameter (mm): 80 ●Blade thickness (mm): 1.3 ●Hole diameter (mm): 20.0 ●Tip height (mm): 2.0 ●Maximum operating speed (rpm): 19000 ●Maximum operating speed (min-1): 19000 ●Included ring hole diameter (mm): 15 ●Tools used: EY80, 105: Circular saw, disc grinder EY125, 160, 180: Circular saw ●Dry type Material/Finish: ●Base metal: Tool steel ●Tip: Diamond abrasive grain
