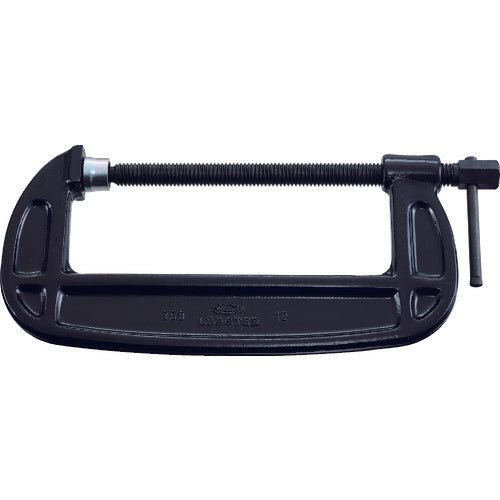

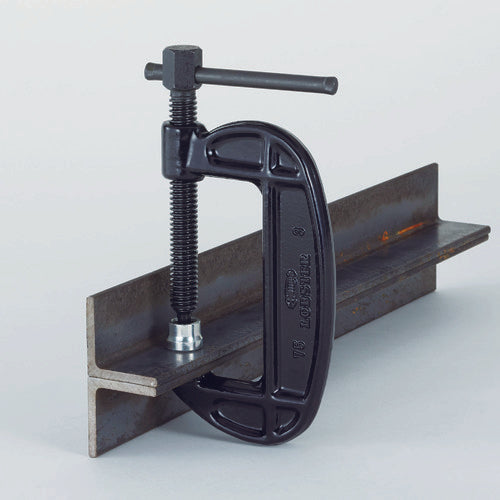

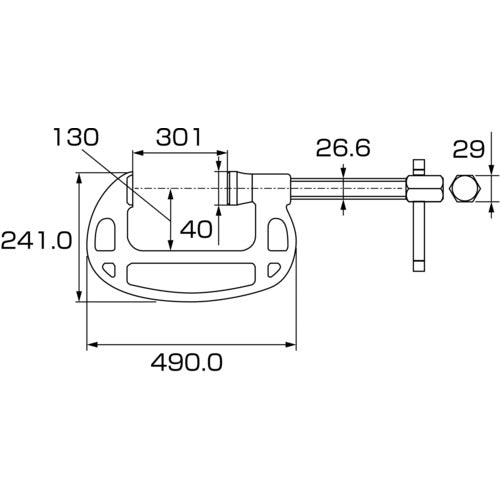

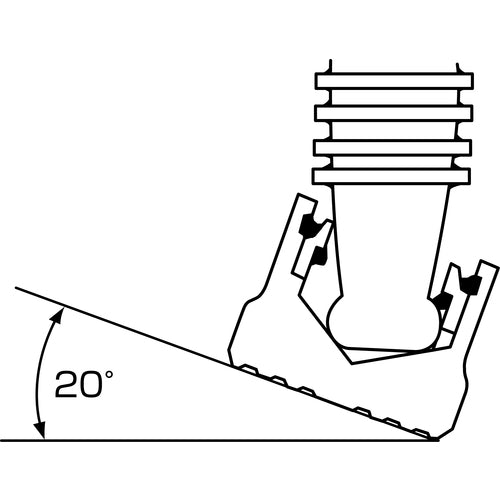

Catalog number: B300 Features: ● The head of the dish can be replaced with a 20° swing angle. (Excluding B25 and B38) ● The shaft head is hexagonal and can be tightened with a wrench. ● Cationic electrocoating. ● Precision forging provides sufficient forging strength for long-term use. ● Thorough heat treatment fully demonstrates the strength that is a characteristic of special steel. ● High-precision square screws reduce play and allow smooth opening and closing. Applications: ● For welding work. Specifications: ● Maximum opening (mm): 301 ● Jaw depth (mm): 130 ● Male thread hexagonal side (mm): 29 ● Disk angle (°): 20 ● Type: Bahco type ● Guaranteed strength (kN): 56.3 ● Male thread hexagonal side (mm): 29 ● Bahco type Material/Finish: ● Special steel (Body: Forged)
