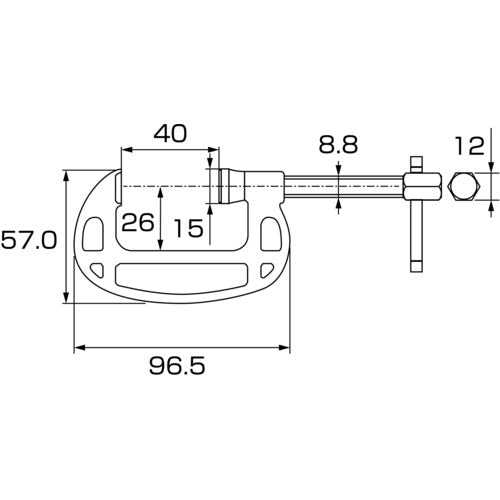

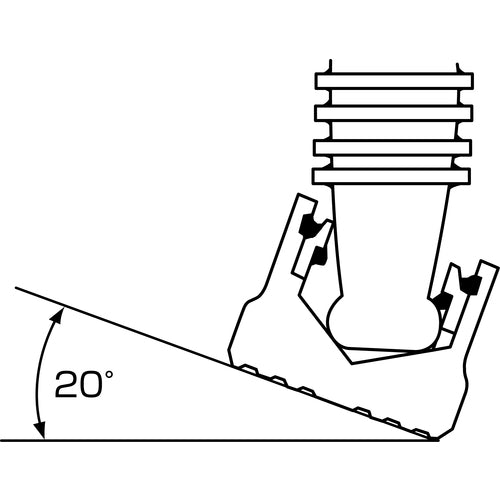

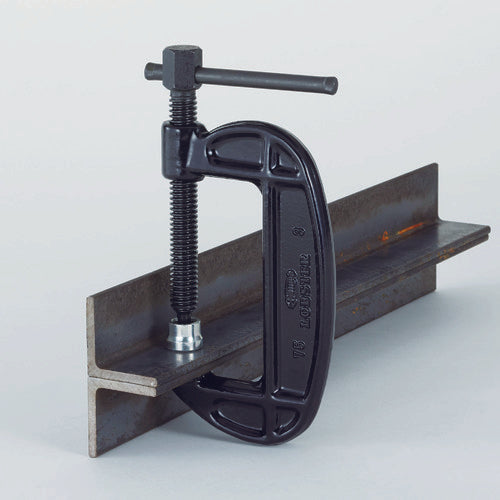

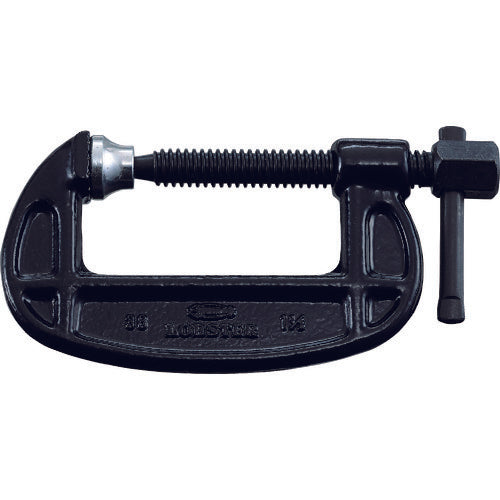

Catalog number: B38 Features: ● The head of the dish can be replaced with a 20° swing angle. (Excluding B25 and B38) ● The shaft head is hexagonal and can be tightened with a wrench. ● Cationic electrocoating. ● Precision forging provides sufficient forging strength for long-term use. ● Thorough heat treatment fully demonstrates the strength that is a characteristic of special steel. ● High-precision square screws reduce play and allow for smooth opening and closing. Applications: ● For welding work. Specifications: ● Maximum opening (mm): 40.0 ● Jaw depth (mm): 26 ● Male thread hexagonal side (mm): 12 ● Disk angle (°): 20 ● Type: Bahco type ● Guaranteed strength (kN): 10.0 ● Male thread hexagonal side (mm): 12 ● Bahco type Material/Finish: ● Special steel (Body: Forged)
