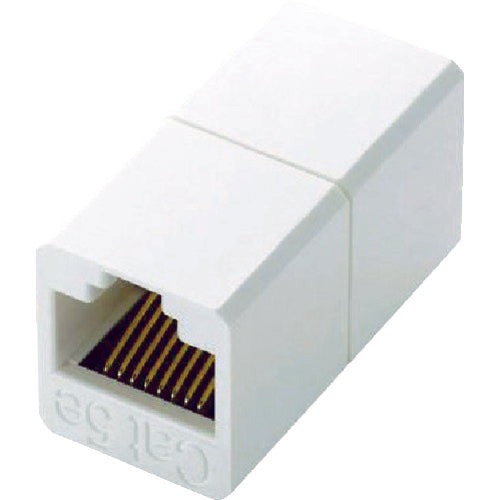

ELECOM CAT5E compatible compact RJ45 extension connector LD-RJ45JJ5Y2 1 piece

Catalog number: LD-RJ45JJ5Y2 Features: ●Loss during relaying is low, and deterioration of data transmission due to extension of LAN cable can be suppressed. ●Very compact, achieving about half the volume of conventional products. ●For extending LAN cables with 10BASE-T/100BASE-TX/1000BASE-T specifications. ●Supports enhanced category 5. Uses: ●As a cover to attach to the connector part of the cable to protect it. ●As an extension connector for LAN cables with RJ-45 modular jacks. Specifications: ●Color: White ●Type: Cat5e ●Compatible lines: UTP/STP cable equipped with RJ-45 connector (however, the shield is not wired) ●Width (mm): 14.7 ●Height (mm): 16.3 ●Depth (mm): 29.8 ●Specifications: Compatible with 10BASE-T/100BASE-TX/1000BASE-T ●Wiremap: Straight
