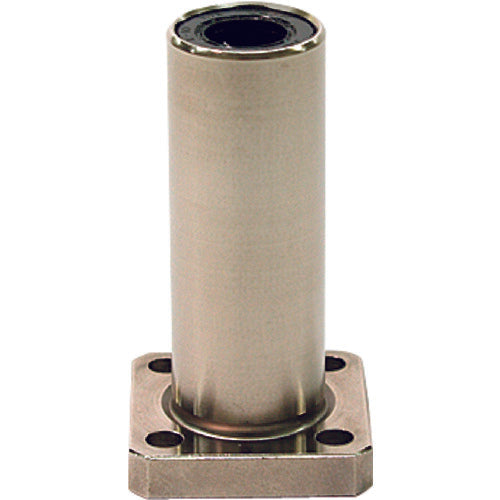

OZAK Eco Bearing Double Square Flange Type Inner Diameter 16 LFDKM16-UU 1 pc

Catalog number: LFDKM16-UU Features: ●Affordable product with excellent cost performance. ●Smooth linear motion is possible when used in combination with a hardened linear shaft. ●Flanges are attached to the end faces for easy assembly. ●Rust-proof types are also available and can be used in a variety of industrial fields. Applications: ●For use in various devices and machines. Specifications: ●Inner diameter (mm): 16 ●Outer diameter (mm): 28 ●Total length (mm): 68 ●t (mm): 6 ●Dp (mm): 38 ●S: M4 ●Seal: Nitrile rubber (NBR) ●Double square flange type ●Operating temperature range: -20 to 80°C Materials/Finish: ●Outer cylinder: SUJ-2 ●Retainer: Resin ●Seal: Nitrile rubber
