Omnifit(R) GL45 Bottle Cap with Luer Port, 3 Port, No Filter & Check Valve, OM4213, 1 Piece
Omnifit(R) GL45 Bottle Cap with Luer Port, 3 Port, No Filter & Check Valve, OM4213, 1 Piece
Regular price
¥6,930
Regular price
Sale price
¥6,930
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

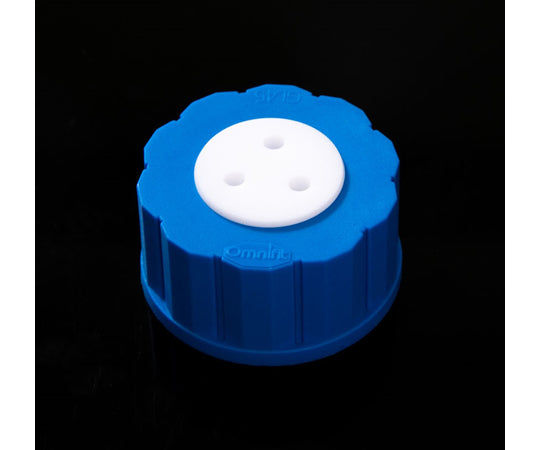

This is a GL45 thread bottle cap that connects to 2 to 4 female lure ports on the top of the white body by passing a 1/8" outer diameter fluororesin tube through it.

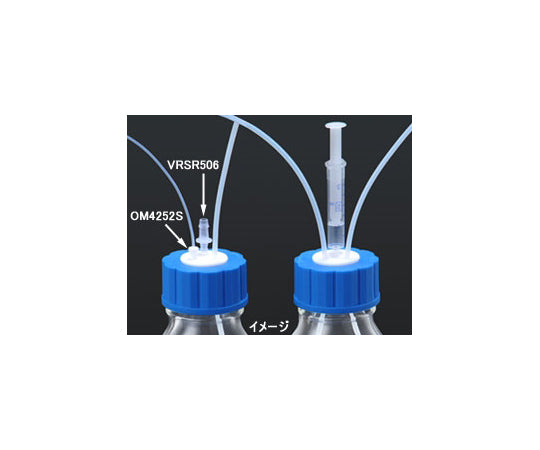

The female lure port can also accommodate separately sold lure port accessories or the male lure part of various commercially available syringes.
The port spacing is 11mm for the 2-port type, 9mm for the 3-port type, and 6mm for the 4-port type.

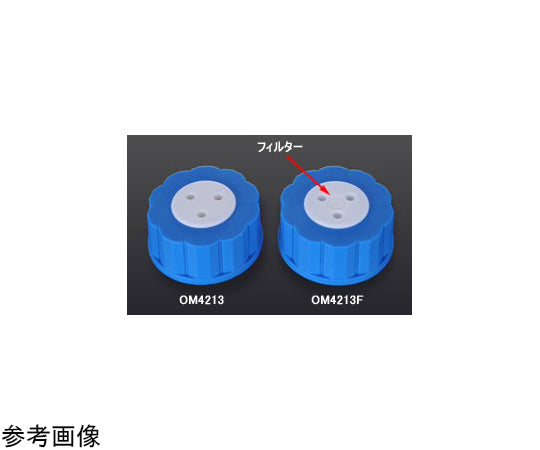

There are types with and without a PTFE 10um inlet filter in the center of the body top to prevent the inhalation of contaminants and a Viton check valve on the inside to balance the negative pressure inside the bottle.
The blue cap is made of polypropylene (PP) and the white body that comes into contact with the liquid is made of PTFE.
The cap can be rotated freely while preventing the tube already connected to the female luer port from twisting when attaching or detaching the cap. Number of ports: 3
Filter & check valve: None
