Onda Manufacturing Double Lock Joint P WPT1 Type Different Diameter Tee Socket 16A (PEX) x 13A x 13A WPT1A-161313-S 1 pc

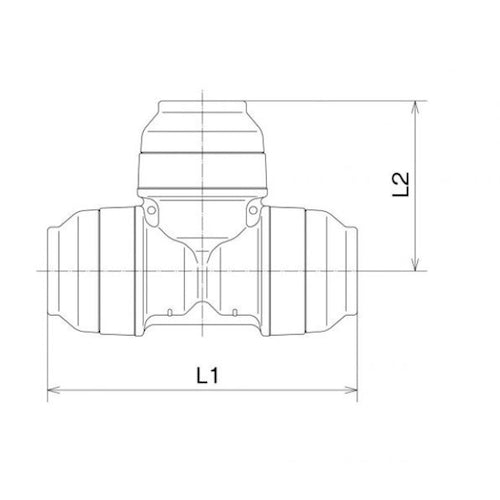

Catalog number: WPT1A-161313-S Features: ●One-touch joint for cross-linked polyethylene pipes and polybutene pipes. ●Uses an outer diameter seal structure with a wide flow path diameter that makes it easy to ensure flow rate. ●Uses a special grade of PPS that is excellent in hot water resistance and chemical resistance, and is tough and resistant to impact. ●Used for branching pipes. Applications: ●For water supply, hot water supply, heating, and snow melting pipes. Specifications: ●Product name: Double lock joint P WPT1 type, different diameter tee socket, 16A (PEX) x 13A x 13A ●L1 (mm): 90.5 ●L2 (mm): 43.5 ●Maximum operating pressure (MPa): 1.75 ●Operating temperature range (℃): -20 to 95 ●Nominal diameter: 16A (PEX) x 13A x 13A Material/Finish: ●Polyphenylene sulfide (PPS)
