Onda Manufacturing Double Lock Joint P WPT1 Type Different Diameter Tee Socket 16A (PEX) x 13A x 16A (PEX) WPT1A-161316-S 1 pc

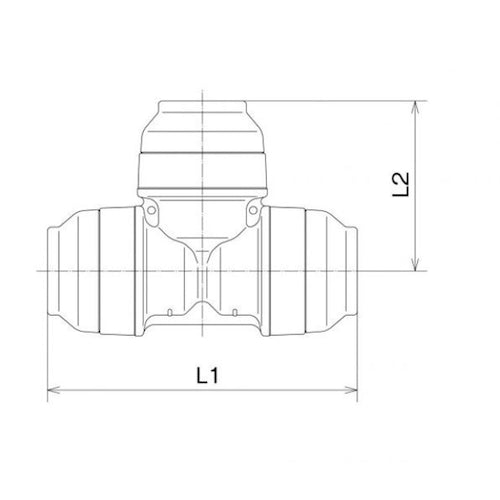

Catalog number: WPT1A-161316-S Features: ●One-touch joint for cross-linked polyethylene pipes and polybutene pipes. ●Uses an outer diameter seal structure with a wide flow path diameter that makes it easy to ensure flow rate. ●Uses a special grade of PPS that is excellent in hot water resistance and chemical resistance, and is tough and resistant to impact. ●Used for branching pipes. Applications: ●For water supply, hot water supply, heating, and snow melting pipes. Specifications: ●Product name: Double lock joint P WPT1 type, different diameter tee socket, 16A (PEX) x 13A x 16A (PEX) ●L1 (mm): 87 ●L2 (mm): 46.5 ●Maximum operating pressure (MPa): 1.75 ●Operating temperature range (℃): -20 to 95 ●Nominal diameter: 16A (PEX) x 13A x 16A (PEX) Material/Finish: ●Polyphenylene sulfide (PPS)
