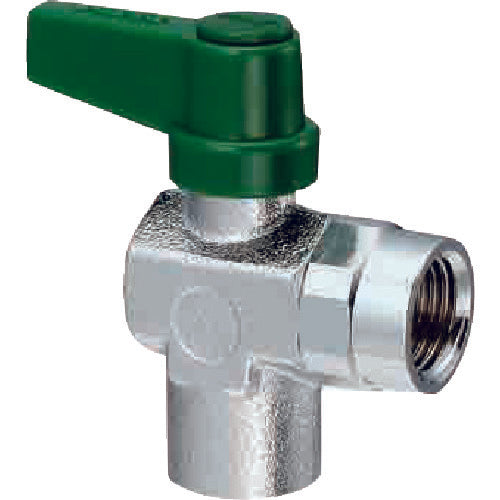

Onda Seisakusho Free Ball ML1 Type Rc1/4 x Rc1/4 ML1-08 1 piece

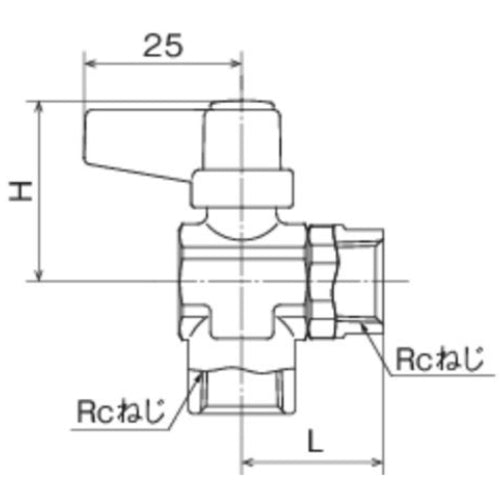

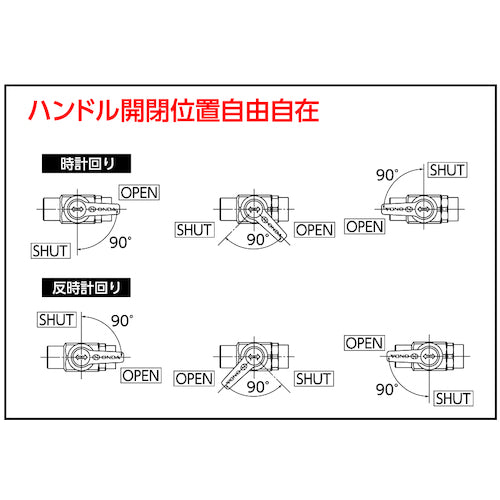

Catalog number: ML1-08 Features: ●Space-saving ball valve. ●Handle position and opening/closing direction can be freely changed according to piping needs. Applications: ●For hot and cold water, oil, and air. Specifications: ● Connection diameter D1: Rc1/4 ● Height (mm): 29 ● Operating temperature range (℃): -20 to 80 ● Connection diameter D: Rc1/4 ● Fluid used: cold/hot water, oil, air ● Maximum allowable pressure (MPa): 1.0 ● Overall length (mm): 22.5 ● Suitable fluids: cold/hot water, oil, air ● Inner diameter (mm): 6 ● Handle length D (mm): 25 ● Nominal diameter A: 8 ● Nominal diameter B: Rc1/4 x Rc1/4 ● Nominal diameter A: 8 ● Nominal diameter B: 1/4 ● Suitable fluids: cold/hot water, oil, air ● L (mm): 22.5 ● H (mm): 29 ● Allowable pressure: 1.0MPa (-20 to 80℃) ● Rc thread x Rc thread Material/Finish: ● Brass (C3771BE)
