Onda Manufacturing Co., Ltd. Miniature Ball Valve MR1 Type R3/8 x R3/8 MR1-10 1 piece

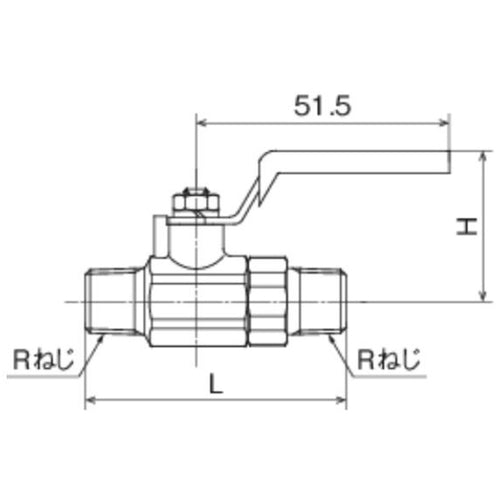

Catalog number: MR1-10 Features: ● Small lever handle type ball valve. Applications: ● For cold and hot water, oil, and air. Specifications: ● Connection diameter D1: R3/8 ● Connection diameter D2: R3/8 ● Height (mm): 32 ● Operating temperature range (℃): -20 to 80 ● Fluids used: cold and hot water, oil, and air ● Overall length (mm): 53 ● Inner diameter (mm): 7.5 ● Handle length D (mm): 51.5 ● Nominal diameter A: 10 ● Nominal diameter B: 3/8 ● Compatible fluids: cold and hot water, oil, and air ● Allowable pressure: 1.0MPa (-20 to 80℃) ● R thread x R thread ● Maximum operating pressure: 1.0MPa Material/Finish: ● Brass (C3771BE)
