Onda Seisakusho AE5 type ball valve Rc3/4 x Rc3/4 AE5-20M 1 piece

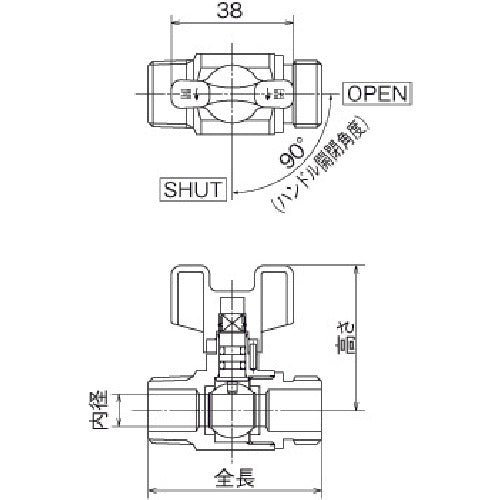

Catalog number: AE5-20M Features: ●A small ball valve that can also be used for EcoCute piping. Applications: ●For cold and hot water, antifreeze, oil, and air. ●For EcoCute piping. Specifications: ●Height (mm): 46.5 ●Maximum allowable pressure (MPa): 1.0 ●Operating temperature range (℃): -15 to 100 ●Total length (mm): 63 ●Compatible fluids: cold and hot water, antifreeze, oil, air ●Inner diameter (mm): 12.5 ●Handle length D (mm): 38 ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Connection: Rc thread x Rc thread ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Compatible fluids: cold and hot water, oil, antifreeze, air ●Allowable pressure: 1.0MPa (-15 to 100℃) ●Rc thread x Rc thread Material/Finish: ●Brass (C3771BE)
