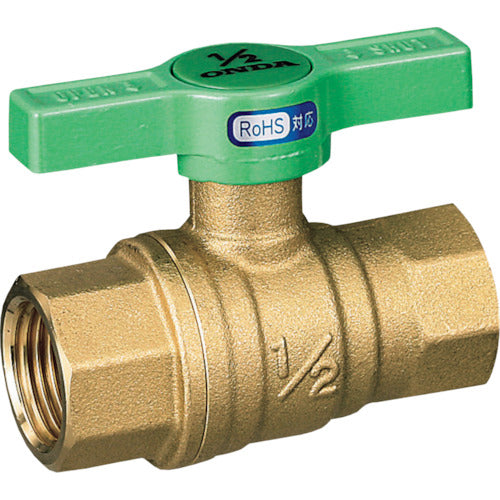

Onda Manufacturing FF type (full ball) RoHS compliant Rc1/2 x Rc1/2 Green T handle G-FF-T15 1 piece

Catalog number: G-FF-T15 Features: Uses materials that control the amount of substances regulated by the RoHS Directive. Applications: For hot and cold water, antifreeze, oil, air, and gas (other than flammable and toxic). Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: Rc1/2 ●Total length (mm): 65 ●Height (mm): 39 ●Handle length D (mm): 65 ●Maximum allowable pressure (MPa): 2.8 (-15℃ to 100℃), 0.5 (up to 150℃) ●Operating temperature range (℃): -15 to 150 ●Compatible fluids: cold and hot water, antifreeze, oil, air, gas (non-flammable and non-toxic) ●Face to face (mm): 65 ●Inner diameter (mm): 15.5 ●Connection: Rc thread x Rc thread ●Allowable pressure: 2.8MPa (-15 to 100℃), 0.5MPa (below 150℃) ●Full bore type Material/Finish: ●Body: Brass
