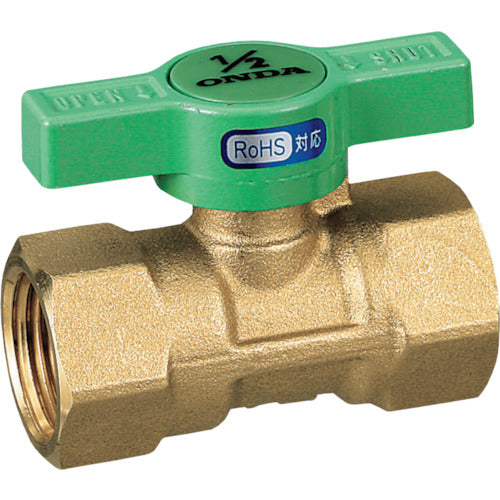

Onda Manufacturing FS type RoHS compliant Rc3/4 x Rc3/4 T handle G-FS-T20 1 piece

Catalog number: G-FS-T20 Features: Uses materials that control the amount of substances regulated by the RoHS Directive. Applications: For hot and cold water, antifreeze, oil, air, and gas (other than flammable and toxic). Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: Rc3/4 ●Total length (mm): 59 ●Height (mm): 34.5 ●Handle length D (mm): 55 ●Maximum allowable pressure (MPa): 4.2 (-15℃ to 70℃), 0.5 (up to 150℃) ●Operating temperature range (℃): -15 to 150 ●Compatible fluids: cold and hot water, antifreeze, oil, air, gas (non-flammable and non-toxic) ●Face to face (mm): 59 ●Inner diameter (mm): 12.5 ●Connection: Rc thread x Rc thread ●Allowable pressure: 4.2MPa (-15 to 70℃), 0.5MPa (below 150℃) ●Reduced bore type Material/Finish: ●Body: Brass
