Onda Manufacturing SBFS2 type (reduced bore) Rc3/8 T handle SBFS2-T10 1 piece

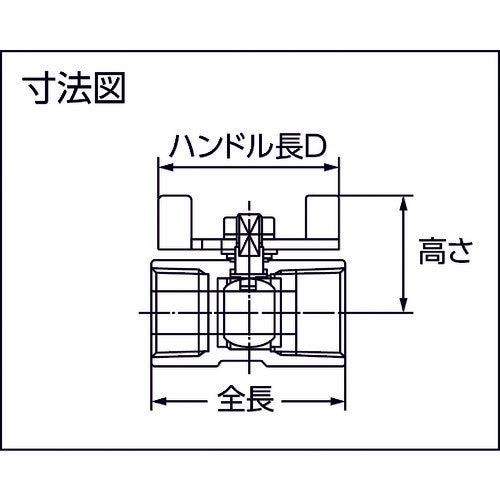

Catalog number: SBFS2-T10 Features: ● Made of austenitic stainless steel, it has excellent corrosion resistance. ● Stable quality due to lost wax casting. Applications: ● For cold and hot water, oil, gas (non-flammable and non-toxic), and saturated steam (allowable pressure 1.0 MPa). Specifications: ● Total length (mm): 44 ● Height (mm): 28.5 ● Maximum allowable pressure (MPa): 4.2 (1.0 for saturated steam) ● Operating temperature range (℃): -20 to 180 ● Suitable fluids: cold and hot water, oil, gas (non-flammable and non-toxic), saturated steam (allowable pressure 1.0MPa) ● Inner diameter (mm): 7 ● Handle length D (mm): 54 ● Nominal diameter A: 10 ● Nominal diameter B: Rc3/8 ● Allowable pressure: 4.2MPa (-20 to 180℃) ● Reduced bore type ● Lost wax casting Material/Finish: ● Stainless steel (SCS13A: SUS304 series) ● Lost wax casting
