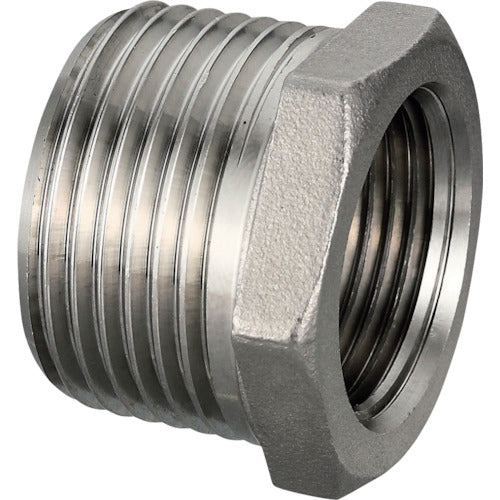

Onda Manufacturing SFB type bushing R3/4 x Rc1/2 SFB-2015 1 piece

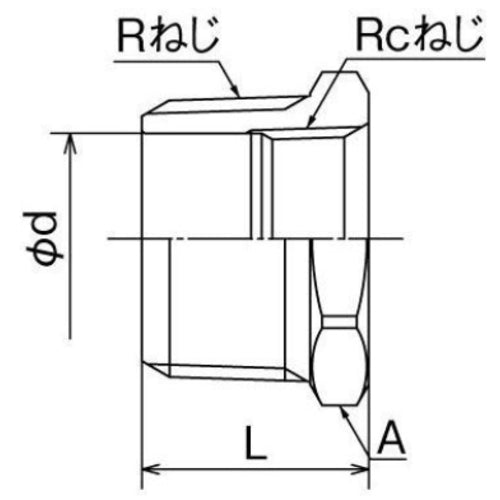

Catalog number: SFB-2015 Features: ● Used to convert the size of tapered male threads and tapered female threads (R x Rc). Applications: ● For cold and hot water, oil, air, steam, and gas (non-flammable and non-toxic). Specifications: ● Nominal diameter A: 20 x 15 ● Nominal diameter B: R3/4 x Rc1/2 ● L (mm): 24 ● Maximum allowable pressure (MPa): 2.00 ● Operating temperature range (℃): -20 to 220 ● Suitable fluids: cold and hot water, oil, air, steam, and gas (non-flammable and non-toxic) ● φd (mm): 19.5 ● 29 hexagon Material/Finish: ● Body: SCS13A
