Onda Manufacturing SFH type header Rc3/4 x Rc1/2 Number of branches 5 SFH-2005 1 piece

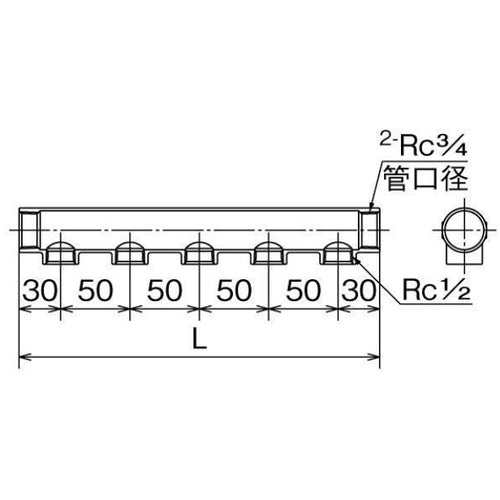

Catalog number: SFH-2005 Features: ● Tapered female thread (Rc thread) Convenient for branch piping. ● Compared to combining multiple tee's, it fits more compactly and reduces the effort required for screwing. Applications: ● For cold and hot water, oil, air, steam, and gas (non-flammable and non-toxic). Specifications: ● Nominal diameter A: 20 x 15 ● Nominal diameter B: Rc3/4 x Rc1/2 ● L (mm): 260 ● Maximum allowable pressure (MPa): 2.00 ● Operating temperature range (℃): -20 to 220 ● Suitable fluids: cold and hot water, oil, air, steam, and gas (non-flammable and non-toxic) ● Number of branches: 5 ● Rc3/4 x 2 ports + Rc1/2 x 5 ports Material/Finish: ● Stainless steel (SCS13A)
