Onda Manufacturing SFL4 type elbow Rc3/8 x Rc3/8 SFL4-10 1 piece

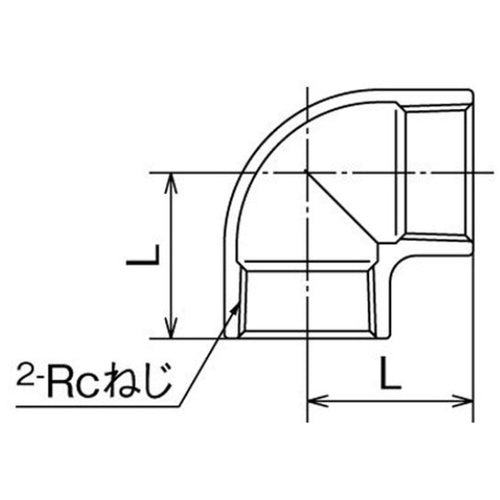

Catalog number: SFL4-10 Features: ● For use with tapered female threads (Rc threads) 90° piping. Applications: ● For cold and hot water, oil, air, steam, and gas (non-flammable and non-toxic). Specifications: ● Nominal diameter A: 10 ● Nominal diameter B: Rc3/8 ● L (mm): 23 ● Maximum allowable pressure (MPa): 2.00 ● Operating temperature range (℃): -20 to 220 ● Suitable fluids: cold and hot water, oil, air, steam, and gas (non-flammable and non-toxic) Material/Finish: ● Stainless steel (SCS13)
