Onda Manufacturing SFN Type Hexagonal Nipple R3/4 x R3/4 SFN-20 1 pc
Onda Manufacturing SFN Type Hexagonal Nipple R3/4 x R3/4 SFN-20 1 pc
Regular price
¥581
Regular price
Sale price
¥581
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

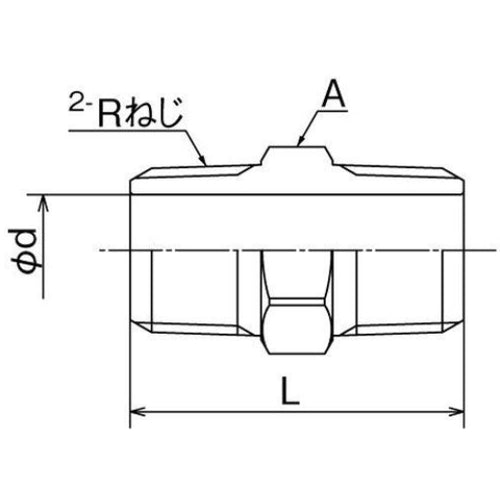

Catalog number: SFN-20 Features: ● Tapered male thread (R thread) Used for connecting to pipes and equipment. Applications: ● For cold and hot water, oil, air, steam, and gas (non-flammable and non-toxic). Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: R3/4 ● L (mm): 47 ● Operating temperature range (℃): -20 to 220 ● Maximum operating pressure (MPa): 2.00 ● Product name: SFN type hexagonal nipple R3/4 x R3/4 ● 28 hexagonal ● φd (mm): 19.5 ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 Material/Finish: ● Stainless steel (SCS13A)
