Onda Manufacturing SVC2 type (swing check valve) Rc3/4 SVC2-20 1 piece

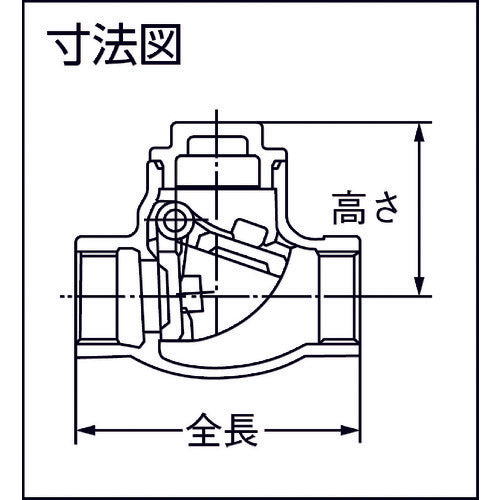

Catalog number: SVC2-20 Features: ●The material is austenitic stainless steel, which has excellent corrosion resistance. ●Since it is a lost wax casting, it has stable quality. Applications: ●For cold and hot water and oil. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: Rc3/4 ●Total length (mm): 80 ●Height (mm): 49 ●Maximum allowable pressure (MPa): 1.4 (still water below 120°C), 1.0 (water and oil below 180°C) ●Operating temperature range (°C): below 180°C ●Compatible fluids: cold and hot water and oil ●Inner diameter (mm): 20 ●Allowable pressure: 1.4MPa (still water below 120°C), 1.0MPa (water and oil below 180°C) Material/Finish: ●Stainless steel (SCS13A: SUS304 series) ●Lost wax casting Caution: ●Please check the water flow direction and installation position before installation.
