Onda Manufacturing SVG2 type (gate valve) Rc2 SVG2-50 1 piece

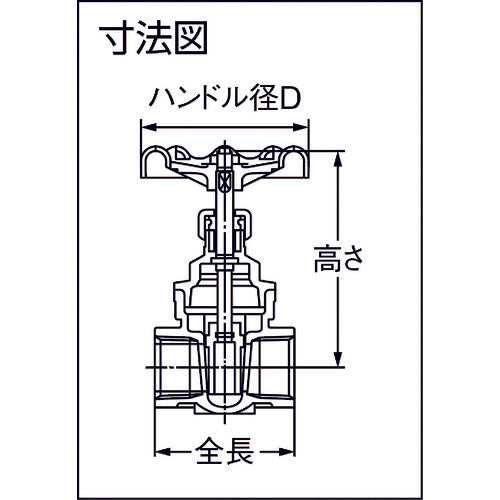

Catalog number: SVG2-50 Features: ● Made of austenitic stainless steel, it has excellent corrosion resistance. ● Stable quality due to lost wax casting. Applications: ● For hot and cold water and oil. Specifications: Nominal diameter A: 50 Nominal diameter B: Rc2 Total length (mm): 87 Height (mm): 155.5 Handle diameter D (mm): 100 Maximum allowable pressure (MPa): 1.4 (still water below 120°C), 1.0 (water and oil below 180°C) Operating temperature range (°C): below 180°C Suitable fluids: cold and hot water and oil Minimum inner diameter (mm): 50 Allowable pressure: 1.4MPa (still water below 120°C), 1.0MPa (water and oil below 180°C) Material/Finish: Stainless steel (SCS13A: SUS304 series) Lost wax casting Caution: Gland packing may require retightening due to stress relaxation during transportation, storage and use. If the gland packing starts to leak during use, be sure to release the pressure and then retighten the nut.
