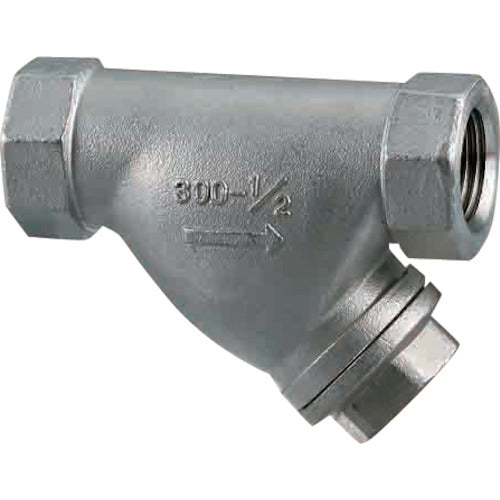

Onda Manufacturing SVY2 type (Y-shaped strainer) Rc3/4 SVY2-20 1 piece

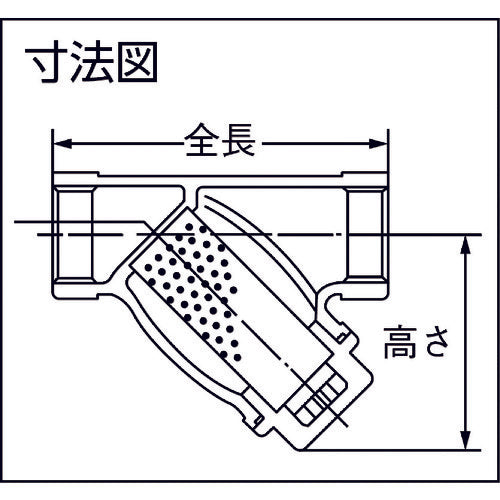

Catalog number: SVY2-20 Features: ●The material is austenitic stainless steel, which has excellent corrosion resistance. ●Since it is a lost wax casting, it has stable quality. Applications: ●For cold and hot water and oil. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: Rc3/4 ●Total length (mm): 93 ●Height (mm): 60.5 ●Maximum allowable pressure (MPa): 2.1 (static water below 120°C), 1.0 (water and oil below 180°C) ●Operating temperature range (°C): below 180°C ●Compatible fluids: cold and hot water and oil ●Minimum inner diameter (mm): 20 ●Allowable pressure: 2.1MPa (static water below 120°C), 1.0MPa (water and oil below 180°C) ●Filter: 40 mesh stainless steel wire on stainless steel perforated plate Material/Finish: ●Stainless steel (SCS13A: SUS304 series) ●Lost wax casting Caution: ●Install in a place where inspection is possible. ●All sizes of filters have a stainless steel perforated plate lined with 40 mesh stainless steel wire. ●Remove the cap periodically and clean the inside of the filter. ●When re-tightening the cap, make sure there is no foreign matter in the packing. ●The water flow direction is specified.
