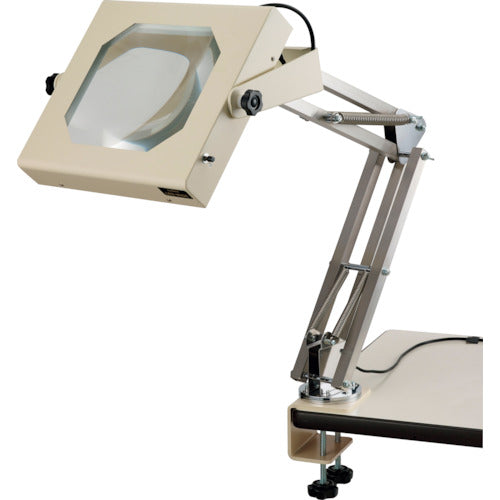

Otsuka LED illuminated magnifying glass LED-WIDE-4 LED-WIDE-4 1 unit

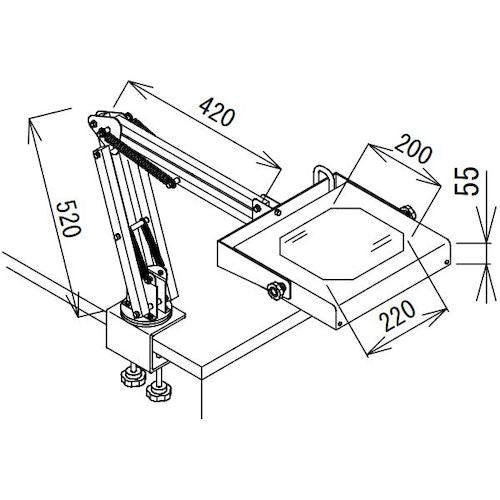

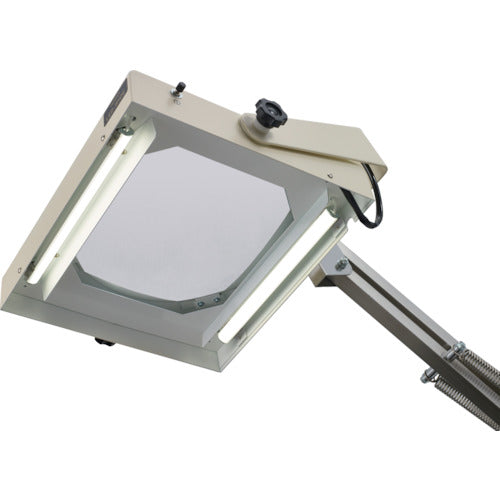

Catalog number: LED-WIDE-4 Features: ● An LED-type illuminated magnifier boasting one of the largest lens diameters in Japan (220 x 200 mm). ● Free-arm type with a very high degree of flexibility. ● The square lens eliminates the distortion on the outer periphery of the lens that occurs with round lenses, making it suitable for long-term work such as full inspection. ● Although it is an LED type, it ensures the same illuminance and diffusion as a fluorescent lamp. ● Uses a metal lens housing with excellent robustness. Applications: ● For visual inspection of the appearance of automotive parts, precision machine parts, electronic parts, resin parts, etc. Specifications: ● Magnification (times): 2 ● Lens dimensions (mm): 220 x 200 ● Arm length (mm): 940 ● Width (mm): 314 ● Total height (mm): 520 ● Height (mm): 520 ● Power consumption (W): 9 ● Light source: LED ● Power supply (V): AC100-240V (※ 125-240V requires changing the AC plug cord) ● Power supply: AC100-240V (※ 125-240V requires changing the AC plug cord) ● Specifications: Free arm type ● Free arm type ● Operating temperature range: 5℃ to 35℃ ● Dustproof and waterproof protection rating: IP20
