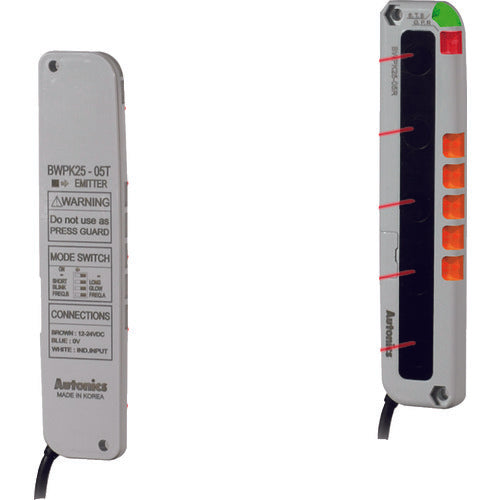

Autonics Picking Sensor (2 pieces in 1 set) BWPK25-05P 1 S

Catalog number: BWPK25-05P Features: ● Compact and thin size with long/short distance detection mode switching function. ● Light/dark-on operation mode can be selected by switch. Applications: ● For detecting part movement, checking part removal, etc. Specifications: ● Output type: PNP open collector output ● Detection distance (m): 0.1-3 ● Length (mm): 9.9 ● Width (mm): 30 ● Height (mm): 140 ● Optical axis pitch (mm): 25 ● Optical axis width (mm): 100 ● Number of optical axes (pieces): 5 ● Protection class: IP40 (IEC standard) ● Detection method: Through-beam type ● Detection object: Opaque (φ35mm or more) ● Power supply voltage: DC12-24V ● Current consumption: 50mA or less ● Protection class: IP40 (IEC standard) ● Cord length: 2m ● CE Material/Finish: ● Case: PC/ABS Detection part: PMMA
