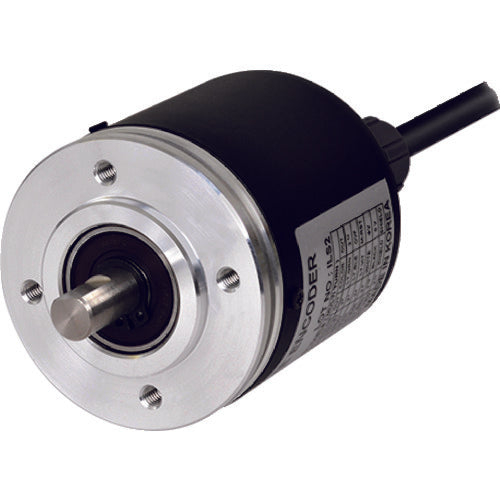

Autonics Multi-Turn Absolute Rotary Encoder EPM50S8-1013-B-PN-24 1 pc

Catalog number: EPM50S8-1013-B-PN-24 Features: ●Single rotation 10 bits (1024 divisions), multiple rotation 13 bits (8192 rotations), total resolution of 23 bits (8388608 divisions). Applications: ●For drill position control of NC lathes, table angle control of machine tools. ●For parking facilities (car turntable control), etc. Specifications: ●Output type: NPN open collector output ●Connection: Axial cable ●Cable length (m): 2 ●Length (mm): 71 ●Width (mm): 50 ●Height (mm): 50 ●Protection class: IP64 (dustproof, oil-proof protection) ●Cord length (m): 2 ●Detection method: Optical ●Power supply voltage: DC12-24V ●Current consumption: 100mA or less ●Shaft outer diameter: φ8mm ●Cord length: 2m ●Protection class: IP64 (dustproof, oil-proof protection) ●CE ●0 Set contents/accessories: ●Coupling ●Bracket
