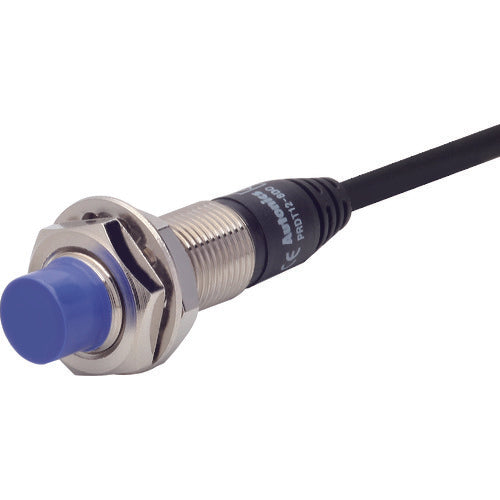

Autonics Cylindrical long distance DC 2-wire proximity sensor PRDT12-8DO 1 piece

Catalog number: PRDT12-8DO Features: ● A cylindrical long-distance pull-out type proximity sensor with enhanced noise resistance performance by adopting a dedicated IC. Applications: ● For determining the presence or absence of a detection object on a production line. Specifications: ● Shape: Cylindrical ● Detection distance (mm): 8 ● Operating distance (mm): 8 ● Operation type: NO ● Detection distance (m): 0.008 ● Output format: Normal open output ● Outer diameter: Φ12 ● Length (mm): 64 ● Width (mm): 21 ● Height (mm): 21 ● Cord length (m): 2 ● Type: Non-shielded ● Protection class: IP67 (IEC standard) ● Power supply voltage: DC12-24V ● Current consumption: 0.6mA ● Protection class: IP67 (IEC standard) ● Cord length: 2m ● Indicator light: Red LED operation indication ● CE Material / Finish: ● Case / Nut: Nickel-plated brass Washer: Nickel-plated iron Detection surface: Heat-resistant ABS
