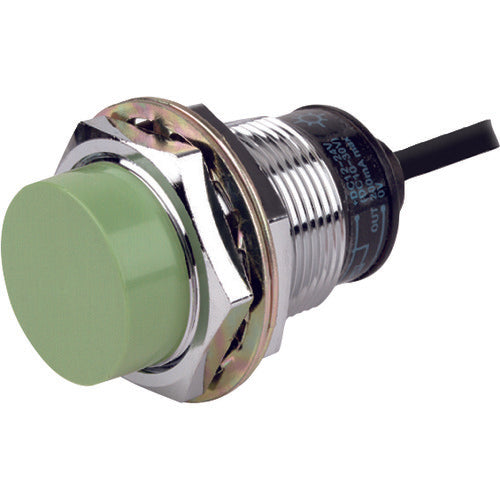

Autonics Cylindrical DC 3-wire proximity sensor PR30-15DN 1 piece

Catalog number: PR30-15DN Features: ● Dedicated IC is used to enhance noise resistance. ● DC 3-wire cylindrical proximity sensor. Applications: ● For determining the presence or absence of a detection object on a production line. Specifications: ● Shape: Cylindrical ● Detection distance (mm): 15 ● Operating distance (mm): 15 ● Operation type: NPN NO ● Detection distance (m): 0.015 ● Output format: NPN NO output ● Outer diameter: Φ30 ● Length (mm): 58 ● Width (mm): 30 ● Height (mm): 30 ● Cord length (m): 2 ● Type: Non-shielded ● Protection class: IP67 (IEC standard) ● Power supply voltage: DC12-24V ● Current consumption: 0.6mA ● Protection class: IP67 (IEC standard) ● Cord length: 2m ● Indicator light: Red LED operation indication ● CE Material/Finish: ● Case/Nut: Nickel-plated brass Washer: Nickel-plated iron Detection surface: PBT
