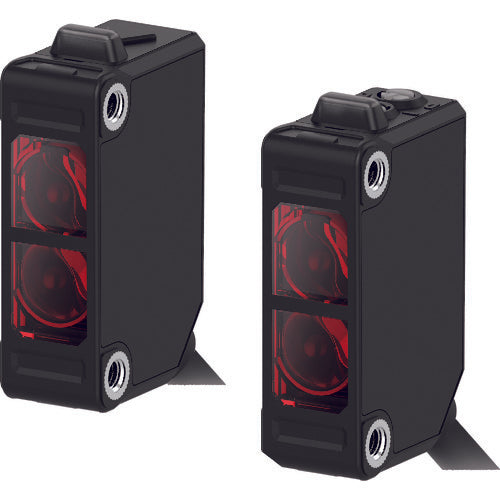

Autonics Small long distance photoelectric sensor (set of 2) BJX10M-TDT 1 S

Catalog number: BJX10M-TDT Features: ● Equipped with a mutual interference prevention function, allowing for close installation. ● Light/dark-on operation mode can be selected by switch. ● Long-distance detection of up to 30 m is possible. Applications: ● For detecting the amount of printing paper loaded. Specifications: ● Detection method: Through-beam type ● Detection distance (m): 10 ● Output format: Transistor output ● Length (mm): 20 ● Width (mm): 11 ● Height (mm): 32 ● Cord length (m): 2 ● Protection class: IP65 (IEC standard) ● Detection object: Opaque (Φ15 mm or more) ● Power supply voltage: DC10-30V ● Current consumption: 20 mA or less ● Protection class: IP65 (IEC standard) ● Cord length: 2 m ● Indicator light: Yellow LED operation display ● Operation mode: Light-on/dark-on switching type ● Volume-type sensitivity adjustment ● CE ● Detection method: Through-beam type Materials/Finish: ● Case, LED cap: PC Detection part: PMMA
