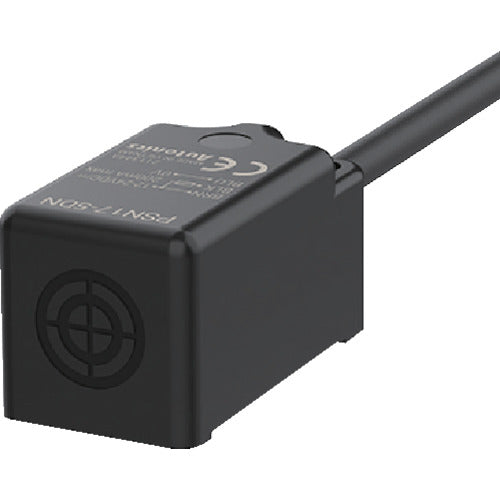

Autonics Square Proximity Sensor PSN17-5DN 1 piece

Catalog number: PSN17-5DN Features: ● DC 3-wire type square proximity sensor. ● Equipped with a protection circuit for reverse power connection. Applications: ● For detecting the position of objects on automatic assembly lines. Specifications: ●Shape: Square ●Detection distance (mm): 5 ●Operating distance (mm): 5 ●Operation form: NPN NO ●Detection distance (m): 0.005 ●Output format: NPN NO output ●Outer diameter: □Width: 18mm x Height: 18mm ●Length (mm): 35.6 ●Width (mm): 18 ●Height (mm): 18 ●Cord length (m): 2 ●Protection class: IP67 (IEC standard) ●Output: Current output (square proximity sensor) ●Power supply voltage: DC12-24V ●Current consumption: 10mA or less ●Protection class: IP67 (IEC standard) ●Cord length: 2m ●Indicator light: Red LED operation indication ●CE Material/Finish: ●Case: Heat-resistant ABS Note: ●The detection surface of PSN17-□DN is horizontal, and the detection surface of PSN17-□DNU is upward.
