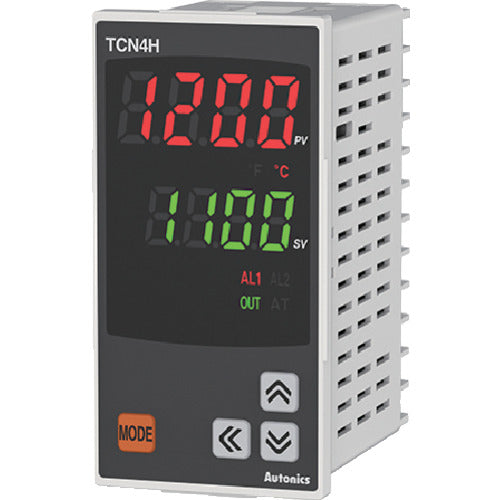

Autonics 2-stage display temperature controller TCN4H-24R 1 piece

Catalog number: TCN4H-24R Features: ● A temperature regulator that can simultaneously display the set value and current value in two rows. ● Ideal temperature control is achieved through 100 ms high-speed sampling. ● Convenience is improved by incorporating both SSRP output and relay output. Applications: ● For temperature control of packaging machines and food processing machines. Specifications: ●Length (mm): 70.5 ●Width (mm): 48 ●Height (mm): 96 ●Output type: Relay or SSR ●Input sensor: K (CA), J (IC), L (IC), T (CC), R (PR), S (PR), Cu50Ω, Dpt105Ω ●Power supply (V): AC100-240 ●Power supply voltage: AC100-240V ●Control method: ON/OFF control, P, PI, PD, PID control ●Power supply voltage (V): AC100-240V (50/60Hz) ●Alarm output: AL1, AL2 relay (AC250V 1A1a) ●CE Material/Finish: ●PC
