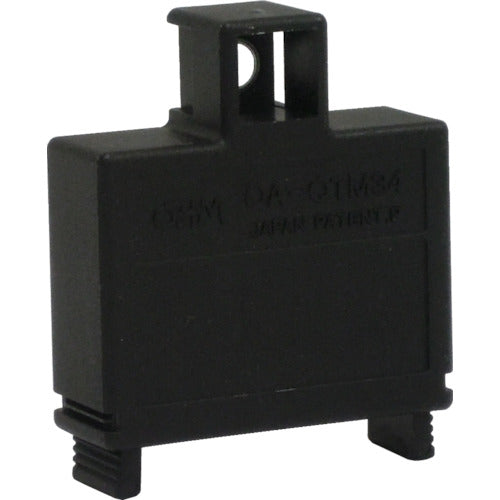

OHM ELECTRIC Screw-on multiple insulation cap OA-QTM34 OA-QTM34 1 piece

Catalog number: OA-QTM34 Features: ●Round crimp terminals can be used to insulate multiple relay points. Applications: ●Relay connections and insulation for motor wires, sensor wires, etc. in various machines and inspection equipment. Specifications: ●Color: Black ●Compatible terminals: Compatible crimp terminals: 1.25-4, 2-4 (round terminals) ●Maximum operating temperature (℃): -20 to +80 ●Length (mm): 42.8 ●Width (mm): 36 ●Height (mm): 12.4 ●Rated voltage (V): 600 ●Number of poles: 3P ●Maximum compatible wire diameter: φ5 x 2/terminal screw ●Compatible crimp terminals: 1.25-4, 2-4 round terminals ●Ambient operating temperature: -20 to +80℃ Materials/Finish: ●Body ●Case: Nylon 66 (UL94V-2) ●Terminal screws: Iron (trivalent chromate plating) ●Insert nut: Brass (nickel plating).
