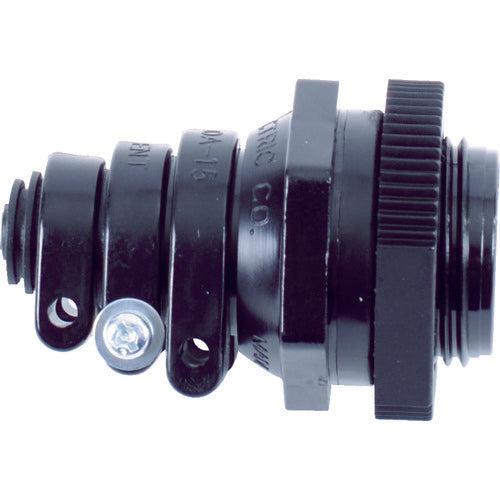

OHM ELECTRIC CAPCON OA-15 ​​OA-15 ​​1 piece

Catalog number: OA-15 ​​Features: ● Simply cut the capcon to fit the wire being used. ● One piece can accommodate a wide range of wire diameters. Applications: ● For the wire outlet of various electrical wiring devices. Specifications: ● Color: Black ● Suitable wire diameter (mm): φ6-16 ● Mounting screw: CTG22 (G3/4) ● Suitable plate thickness: 6mm or less ● Mounting hole diameter (mm): φ28 ● Ambient temperature during use: -25 to 70°C Materials/Finish: ● Body: Soft polyvinyl chloride ● Screw section: Polycarbonate (UL94V-2) (OA-S1 is soft polyvinyl chloride, internally reinforced ABS) ● Lock nut: Nylon 66 (UL94V-2) ● Screw, press nut: Iron (trivalent chromate plating)
