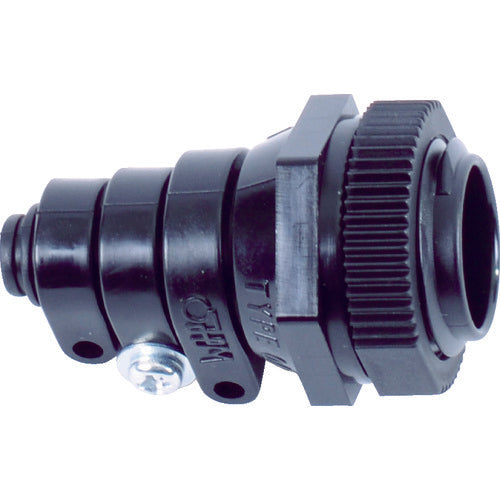

OHM ELECTRIC CAPCON OA-1 OA-1 1 piece

Catalog number: OA-1 Features: ● Simply cut the Capcon to fit the wire you are using. ● One piece can accommodate a wide range of wire diameters. Applications: ● For the wire outlet of various electrical wiring devices. Specifications: ● Color: Black ● Suitable wire diameter (mm): φ4-12 ● Mounting screw: CTG16 (G1/2) ● Suitable plate thickness: 4mm or less ● Mounting hole diameter (mm): φ21 ● Ambient temperature during use: -25 to 70°C Materials/Finish: ● Body: Soft polyvinyl chloride ● Screw part: Polycarbonate (UL94V-2) (OA-S1 is soft polyvinyl chloride, internally reinforced ABS) ● Lock nut: Nylon 66 (UL94V-2) ● Screw, press nut: Iron (trivalent chromate plating)
