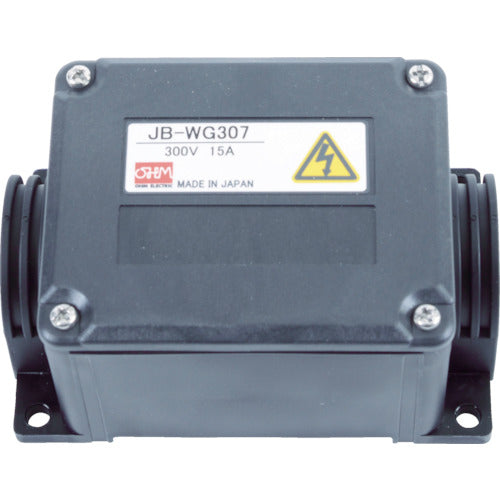

OHM ELECTRIC JOYBOX JB-WG307 JB-WG307 1 piece

Catalog number: JB-WG307 Features: ●Waterproof performance is IP67. ●Female thread specification and compatible with various connectors. ●Comes with a 2P short bar. (JB-WG311 comes with a 4P short bar.) Applications: ●Relay for power supply and sensor wires. Specifications: ●Color: Black ●Number of poles: 7 ●Length (mm): 102 ●Width (mm): 64.8 ●Height (mm): 52 ●Type: Screw type ●Terminal screw: M3 x 8 free-standing screw ●Applicable wire nominal cross-sectional area: 1.25 m [m2] or less ●Mounting connector conditions: Connector outer diameter φ33 mm or less, mounting screw CTG16 Material/Finish: ●Body: Nylon 66 (UL94V-2) ●Lid: Nylon 66 GF30% (UL94V-0) ●Terminal screw: Iron (trivalent chromate plating) ●Terminal fittings, lid fixing nut, short bar: Brass (nickel plating) ●Lid fixing screw: Stainless steel ●Gasket: Urethane foam
