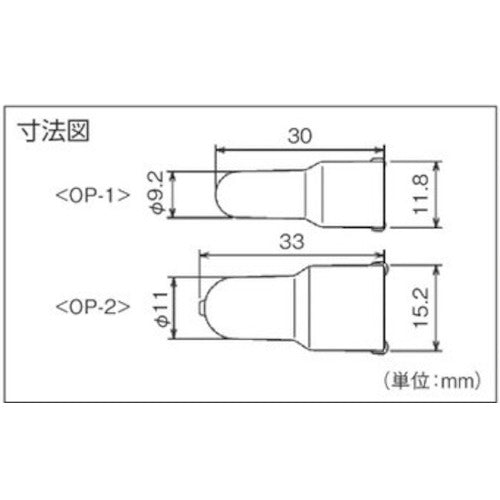

Catalog number: OP-1 Features: ●Insulation can be achieved by simply placing it over an E-sleeve instead of wrapping it with tape. ●For use with sleeve E-small. Applications: ●Insulation of E-sleeve crimp connections in indoor wiring and boxes. Specifications: ●Color: Red transparent ●Compatible sleeve: JIS bare crimp sleeve E-small for copper wire ●Length (mm): 30 ●Width (mm): 11.8 ●Height (mm): 11.8 ●Rated voltage (V): AC/DC600 ●Rated voltage: AC/DC600V ●Ambient temperature during use: -20 to 80°C Materials/Finish: ●Main body case: Polycarbonate (UL94V-2)
