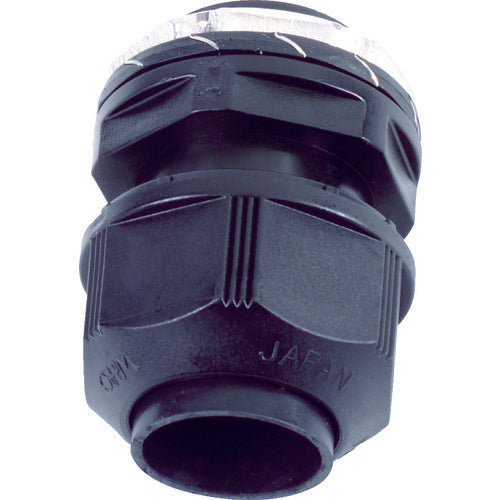

OHM ELECTRIC Waterproof Capcom OA-W2823 OA-W2823 1 unit
OHM ELECTRIC Waterproof Capcom OA-W2823 OA-W2823 1 unit
Regular price
¥907
Regular price
Sale price
¥907
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: OA-W2823 Features: ● Oil resistant. (Do not use in places exposed to sunlight.) ● Waterproof performance is IP67. Uses: ● Protection and retention of wire pull-out parts of various electric wiring devices. Specifications: ● Color: Black ● Suitable wire diameter (mm): φ19-23 ● Mounting screw: CTG28 (G1) ● Suitable plate thickness: 5.5mm or less ● Mounting hole diameter (mm): φ34 ● Ambient temperature for use: -25 to 80°C Materials/Finish: ● Nipple, tightening cap, seal ring: Nylon 66 (UL94V-2) ● Lock nut: Iron (trivalent chromium plating) ● Rubber seal, rubber bush: NBR (nitrile rubber) ● Chrysanthemum seat O-ring: PVC-based elastomer (stainless steel chrysanthemum seat built-in)
