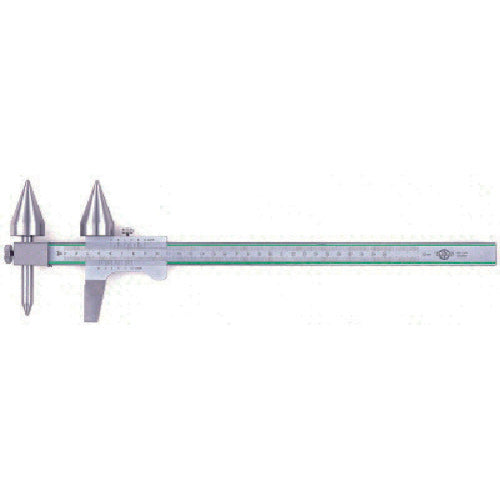

Kanon offset round hole pitch caliper 150mm RM2-15 1 piece

Catalog number: RM2-15 Features: ●It is possible to measure the pitch between holes of different diameters as well as holes of equal diameter. Applications: ●A measuring tool necessary for all processing sites. Specifications: ●Manufacturer code: 121201 ●Measuring range (mm): 25-150 (upper row), 20-150 (lower row) ●Maximum allowable error (mm): ±0.08 ●Minimum display (mm): 0.1 ●Jaw dimensions (mm): 40 ●Compatible hole diameter (mm): 1-5 ●Depth bar: None ●Total length (mm): 261 ●Instrument error (mm): ±0.07 ●Minimum display (mm): 0.1 ●Minimum reading value 0.1mm Material/Finish: ●Stainless steel (SUS420J2)
